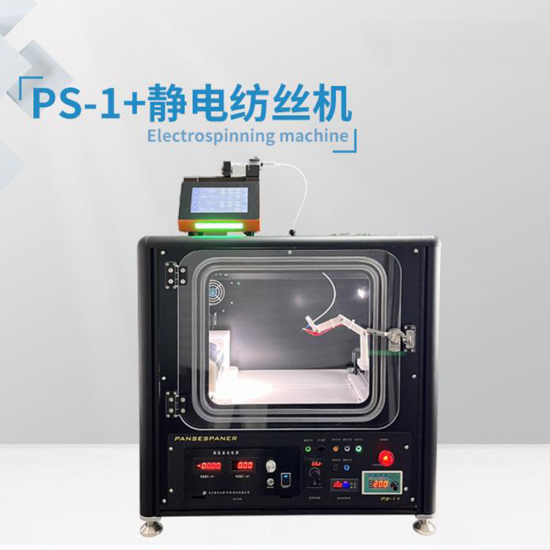

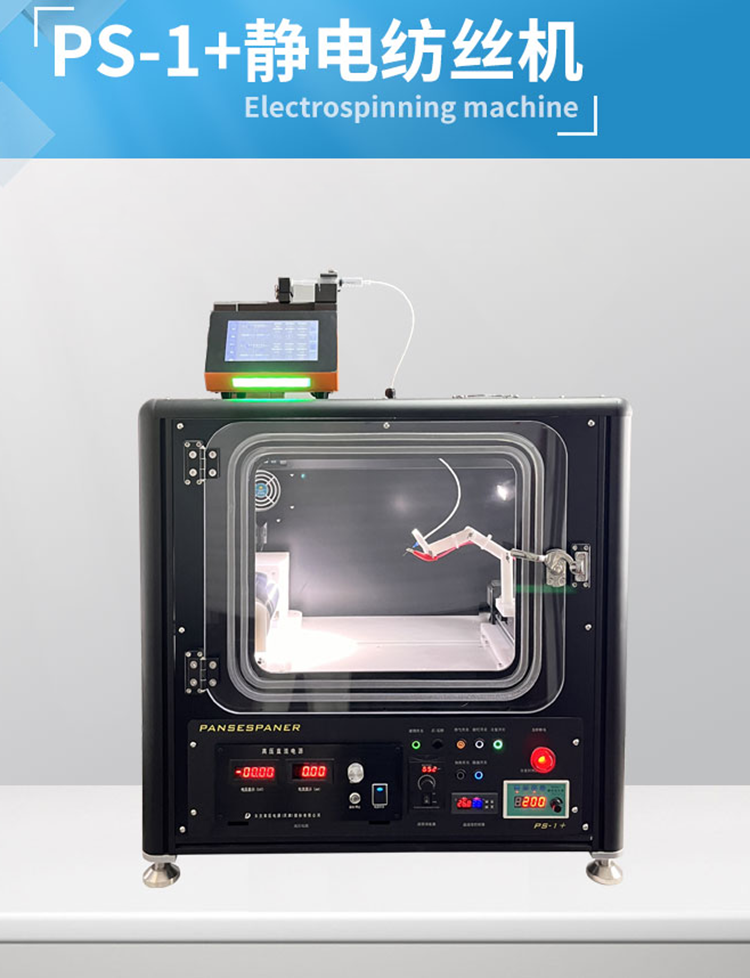

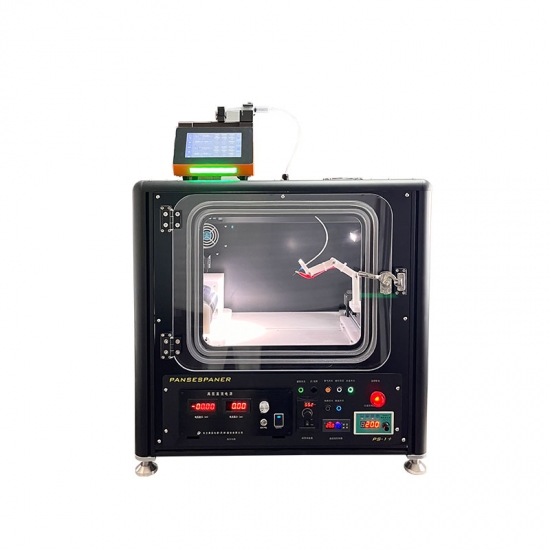

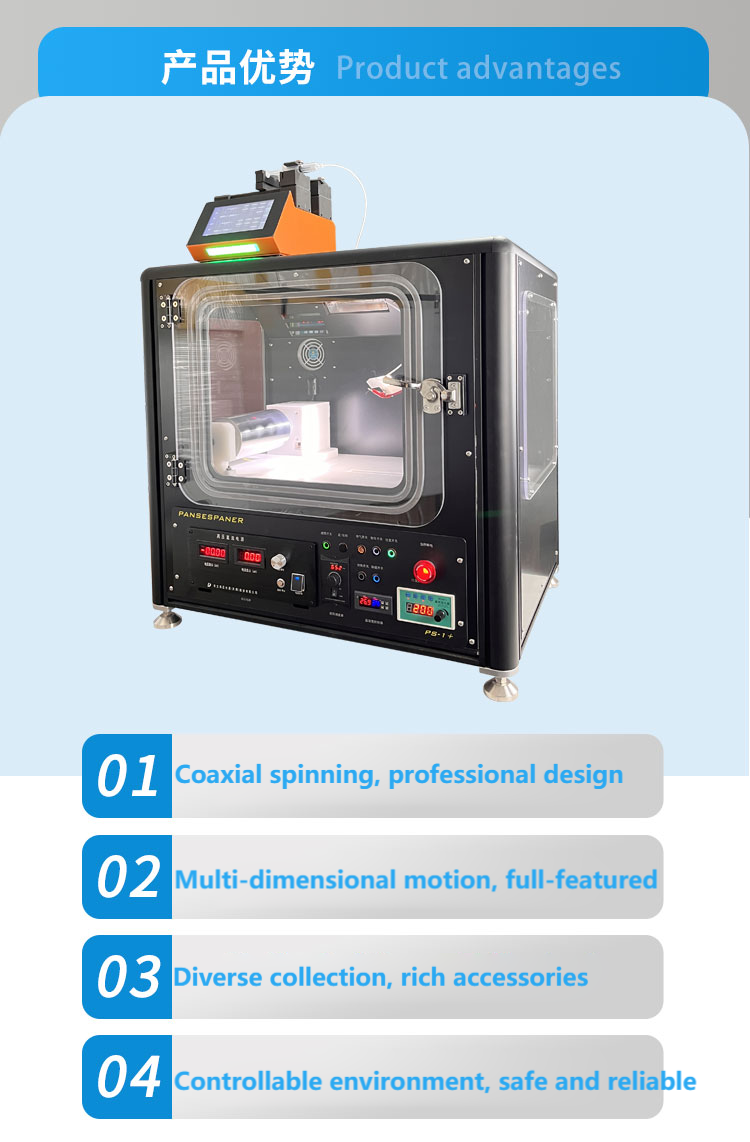

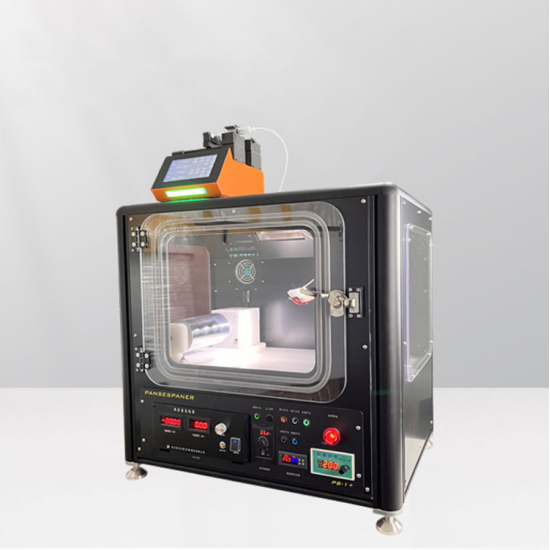

Professional Laboratory Nanofiber Electrostatic Spinning Machine

High voltage power supply

1: Output positive voltage

Voltage DC: 0~30KV    Current: 1mA

With digital display, over-current protection, over-voltage protection, arc pulling protection, memory, reset, actual value, set value, protection value, error code display and other functions

Micro-advancing system

1: External dual-control four-channel propulsion system

Dual control four channel syringe pump with 7’colour touch screen control. Adopt continuous metering pump with colour digital display, flow rate, injection volume and injection time can be controlled freely

2: High pressure resistance

Can be used in high pressure environment, reliable insulation system, not easy to break down

3: Wide range of application

Applicable syringes: 2ml, 5ml, 10ml, 20ml, etc.

4: Rich functions

Two sets of propulsion modules for coaxial spinning, hybrid spinning, multi-needle spinning, and side-by-side spinning

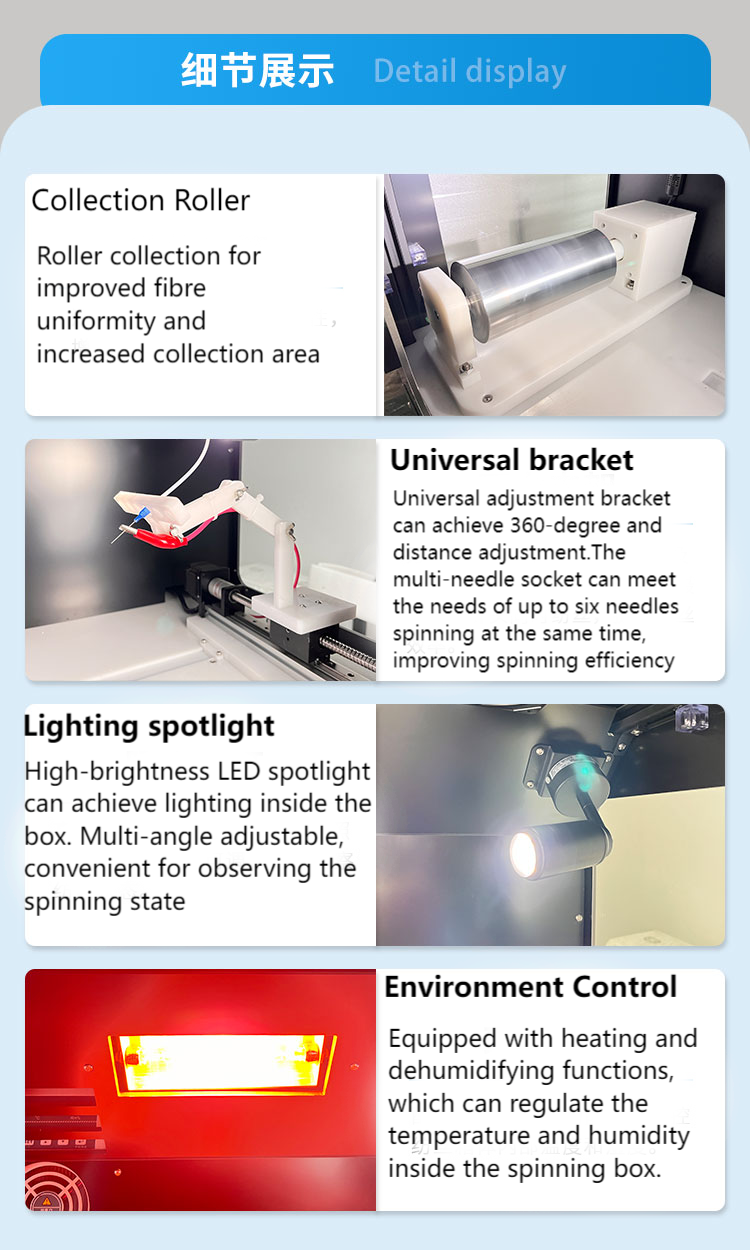

Sample collection device

1: Roller collection

Roller: rotating drum

Speed: 120~1300rpm      Roller size: 100mmx200mm

2: Parallel fiber collection

Optional: high-speed rotating roller (speed 200~4500rpm)

3: Motion device

Reciprocating device: increase spinning area and improve sample uniformity

Maximum speed: 0~1000    Stroke: 0~200mm

Reciprocation number, reciprocation distance, reciprocation interval can be set, can be infinite reciprocation cycle.

4:Needle holder

Multi-angle and distance adjustment, maximum support 6 holes

Environmental Control System

1: Humidity control

Built-in dehumidification module, effectively reduce the ambient humidity in the equipment, improve the spinning effect

2: Temperature control

Infrared and mild heating to increase the temperature and accelerate the solvent evaporation fibre forming.

3:Exhaust system

Built-in exhaust fan, can quickly replace the organic gas in the chamber, effectively avoid the discharge of the spinning head to ignite the organic gas.

4:Lighting System

With operating lamp, can observe the spinning process.

Safety Protection

1: Safety Protection

Discharge short-circuit protection, operating light; grounding system, static elimination system

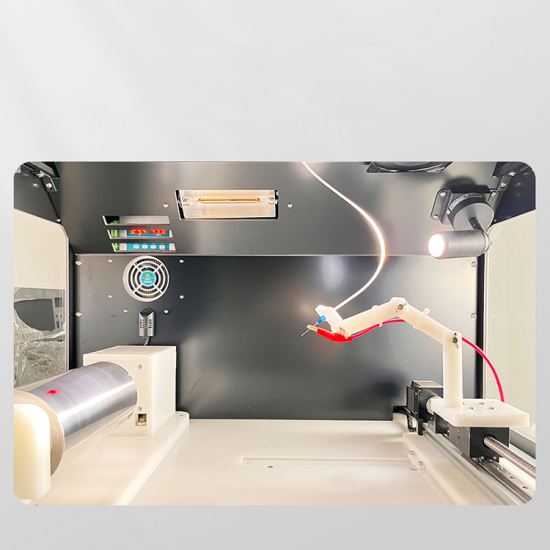

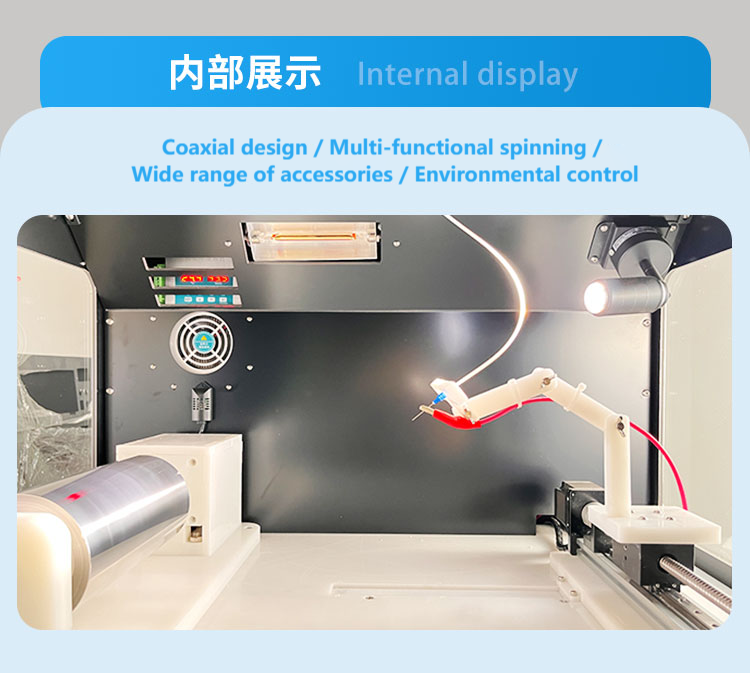

Spinning Chamber

1:Box size

L*W*H(800mmx600mmx600mm)

2:Lighting system

Built-in 360-degree spotlight, convenient to observe the spinning experiments

3:Multi-face window

Three windows to observe the spinning condition from different angles.
