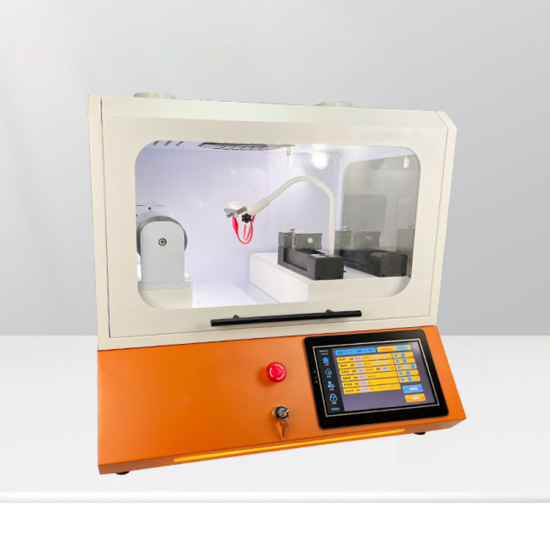

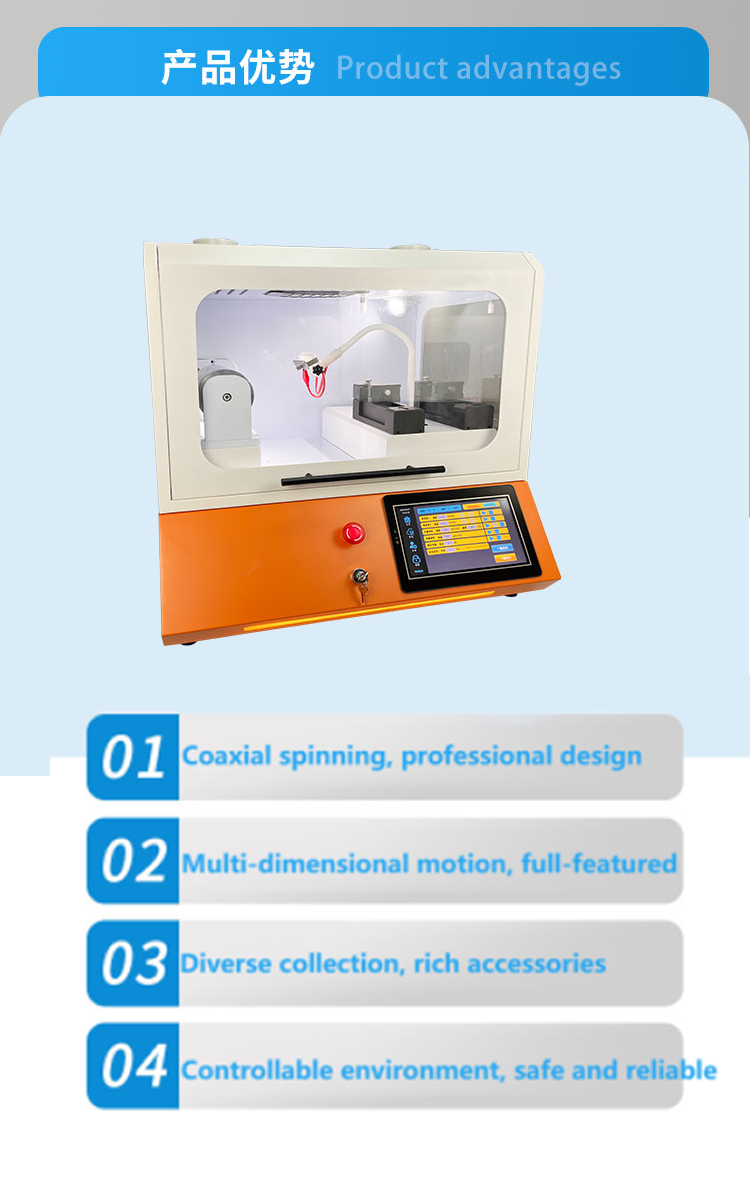

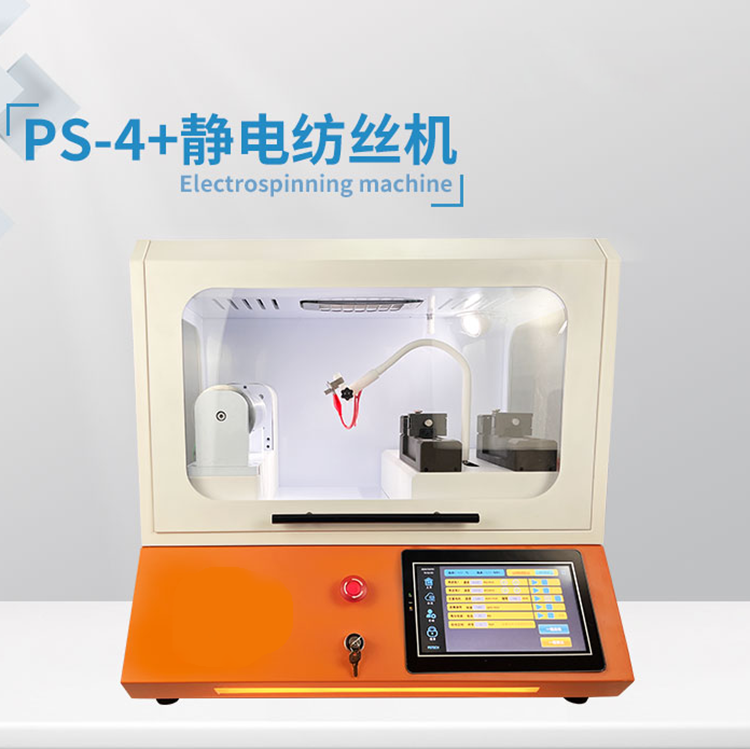

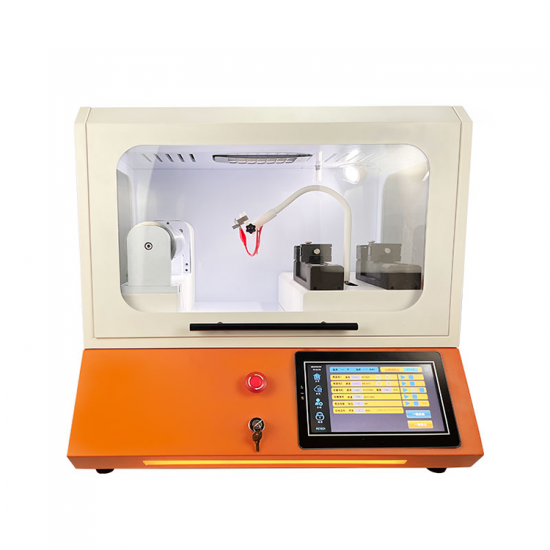

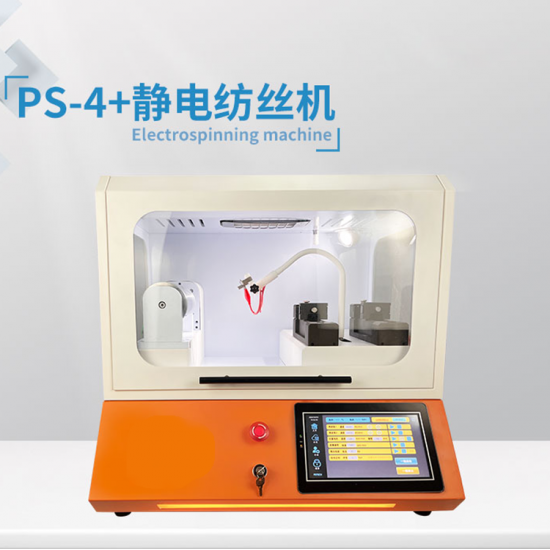

Intelligent control Nano Electrospinning System with Collection Device

High voltage power supply

1: Output positive voltage

Voltage DC: 0~+50KV    Current: 1mA      Input voltage: AC220V + 10%

With digital display, over-current protection, over-voltage protection, arc pulling protection, memory, reset, actual value, set value, protection value, error code display and other functions

2:Output negative voltage(Optional)

Voltage DC: 0~-30KV    Current: 1mA    Input voltage: AC220V + 10%

Spinning nozzle

1: Steel-plastic nozzle: 100 pcs      Metal nozzle: 12 pcs

2: Side-by-side nozzle: 1 pc         Quadruple nozzle: 1 pcs

3: Coaxial nozzle: 1 pcs

Industrial pump systems

1:Built-in dual-control four-channel propulsion system

Two sets of syringe pumps, both independently controllable, four-channel propulsion, to meet the coaxial and other spinning functions

2:Intelligent control

Propulsion rate, propulsion liquid volume, propulsion time can be freely controlled.

3:Automatic liquid supply speed range

0.001~65mL/min

4:Adjustment precision

0.001mL/min

5:High voltage resistance level

50kV, can be used in high-voltage environment, reliable insulation system, not easy to break through.

6:Wide range of application

Applicable to syringe 1-50ml

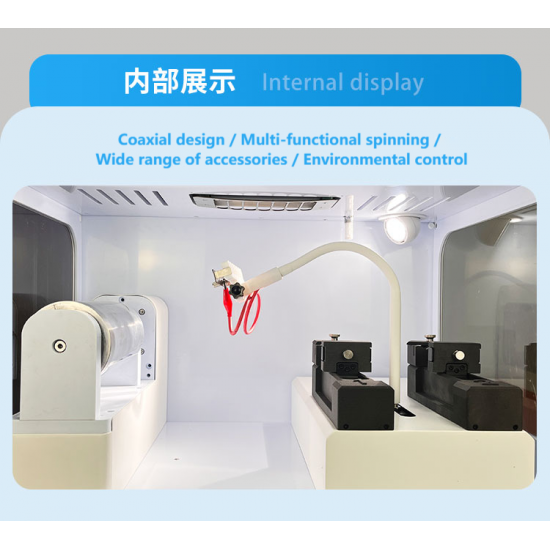

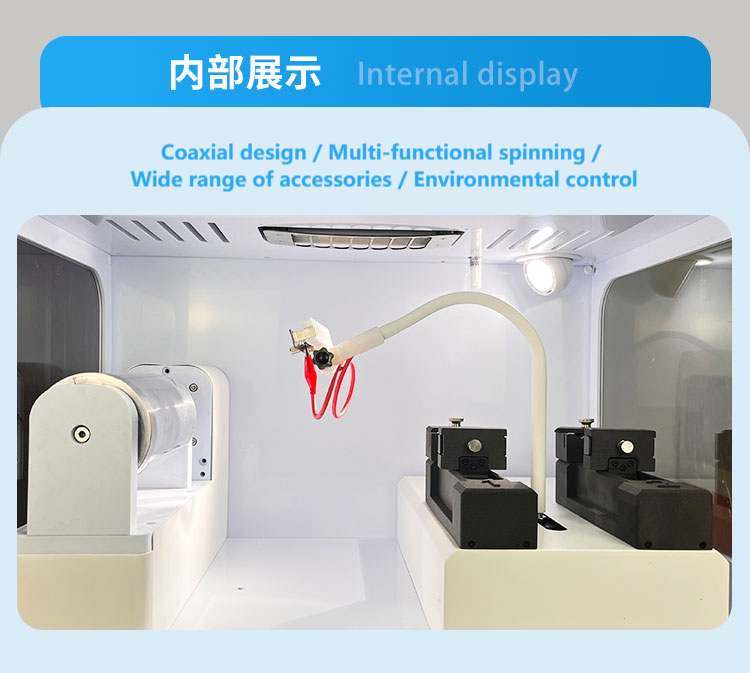

Sample collection device

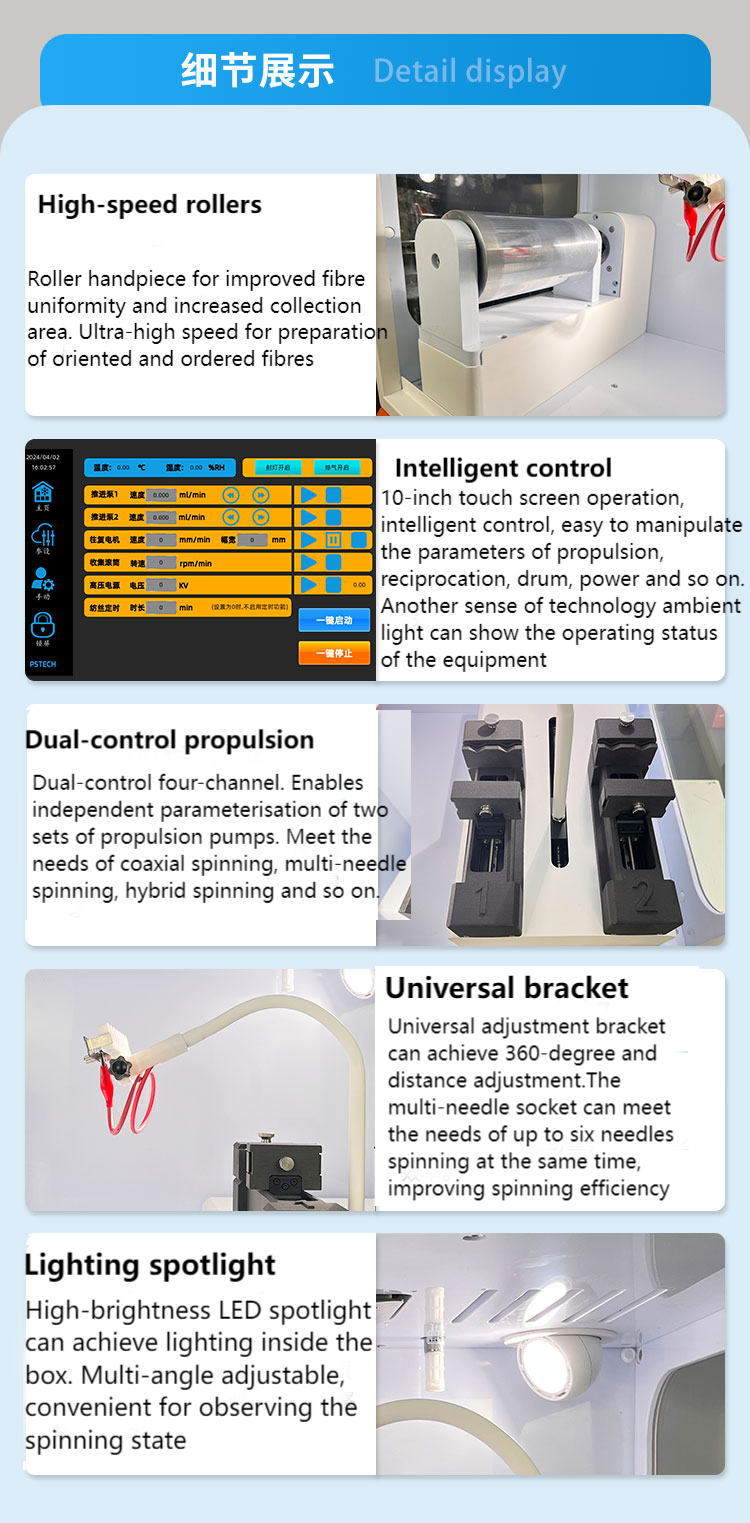

1:High speed collection drum

Diameter:100mm Length:200mm Speed range:200~4500rpm

Continuously adjustable rotational speed and high-precision servo control for orderly fibre collection

2: Parallel collection

Area 20cm*20cm, acceptance direction and angle adjustable

Motion device

1: Needle holder

Number of needle holders: 6     Hole pitch: 20mm      Hole diameter: 11mm

Can be used to fix various types of spinning nozzles such as plastic steel needle, stainless steel needle, coaxial needle, etc.

2: Adjusting the strut

Adjustment distance L10-300mm adjustable, angle 360 degrees range adjustable

3: Reciprocating motion

Platform travelling speed: 1-2500mm/min     Reciprocating stroke: 0-200mm

Reciprocating distance, reciprocating times, reciprocating speed can be set.

Positioning spinning, reciprocating cycle spinning, centring spinning and other functions can be achieved.

Environmental Control System

1:Temperature and humidity control

Infrared heating dehumidification, rapid increase in temperature, accelerate the evaporation of solvents fibre forming, and at the same time can effectively reduce the humidity of the environment within the equipment to improve the spinning effect.

2:Dehumidifier (optional)

Delivering dry gas to the chamber to effectively reduce humidity

3:Exhaust system

Built-in exhaust fan for rapid removal of organic gases from the chamber

4:Lighting System

With operating lamp, can observe the spinning process.

Intelligent control system

1:Touch screen control

10 inch human-machine interface CNC control

2:Intelligent control

Regulate the operation of high-voltage power supply, motion device, propulsion system, heating, exhaust, lighting and other components and monitor the status of each part.

3:Parameter memory

Spinning time can be set, automatically shut down the equipment to ensure safety with automatic parameter recording, saving function.

Safety Protection

1: Safety Protection

1:Equipped with discharge short-circuit protection, equipped with leakage protection

2:Grounding and static elimination system, to avoid electric charge accumulation caused by electric shock, fire, explosion and other accidents.

3:With inert gas access function.
