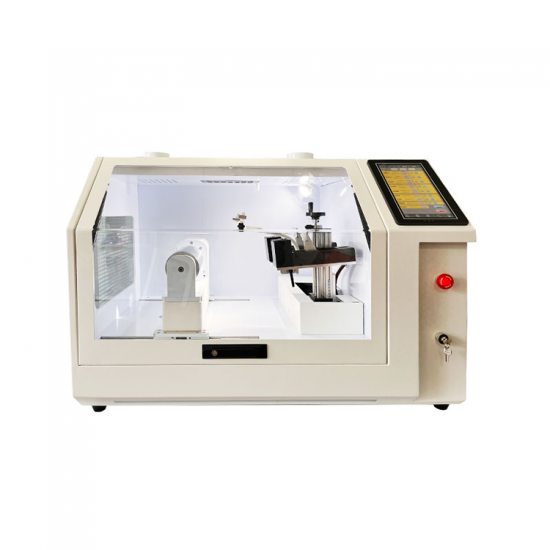

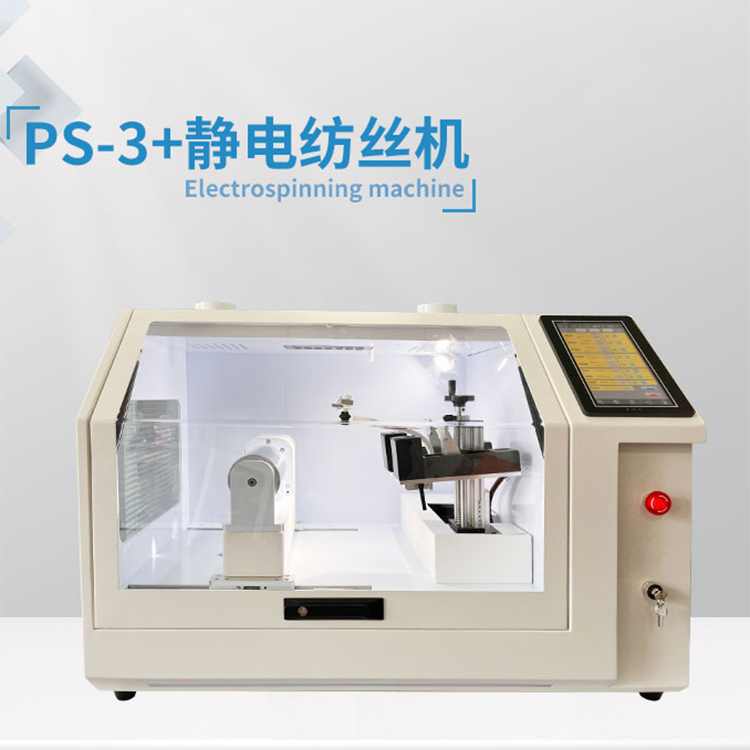

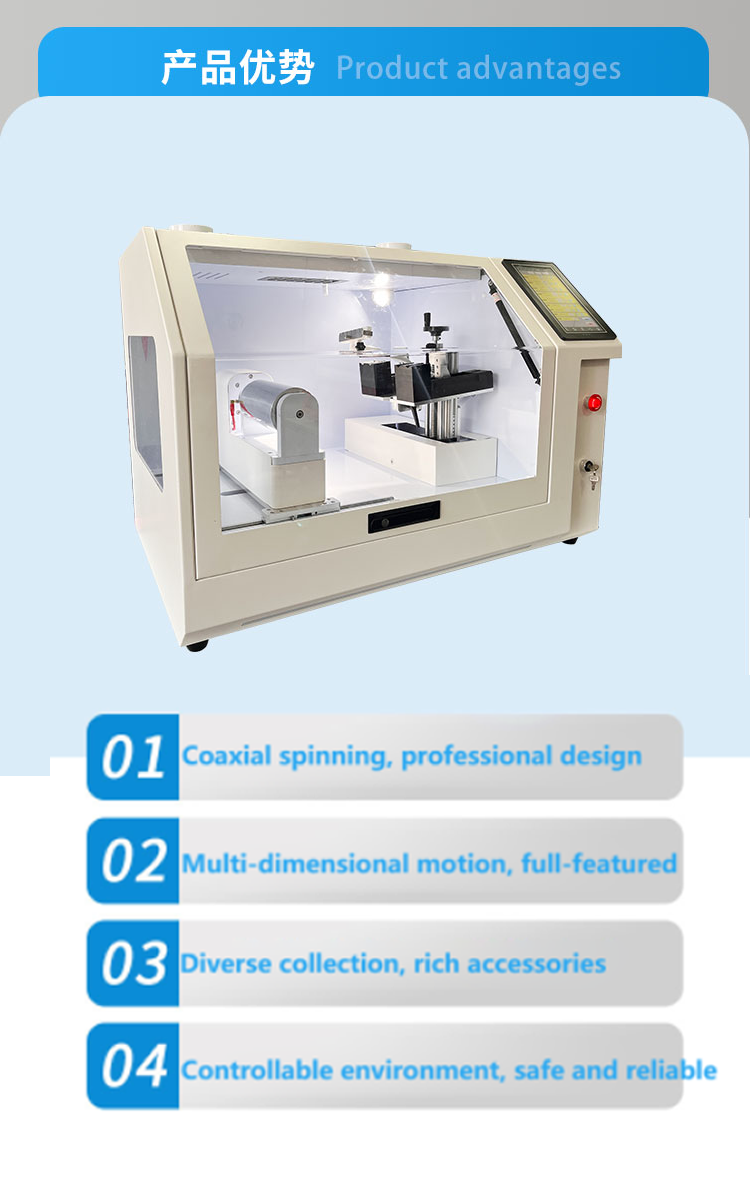

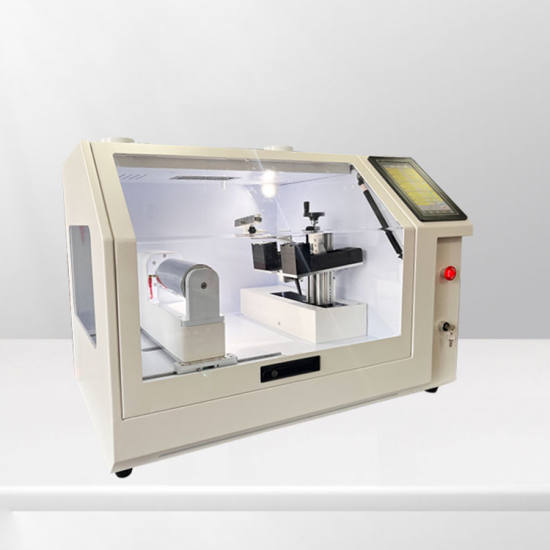

Laboratory Nano Electrospinning System with High Voltage Soucer and Collection Device

High voltage power supply

1: Output positive voltage

Voltage DC: 0~+50KV    Current: 1mA

With digital display, over-current protection, over-voltage protection, arc pulling protection, memory, reset, actual value, set value, protection value, error code display and other functions

1:Output negative voltage

Voltage DC: 0~-30KV    Current: 1mA

With digital display, over-current protection, over-voltage protection, arc pulling protection, memory, reset, actual value, set value, protection value, error code display and other functions

Industrial pump systems

1:Built-in dual-control four-channel propulsion system

Dual-control four-channel design, two groups of independent parameter design, all can be independently controlled.The number of channels is 4. Meet the coaxial spinning, multi-needle spinning, hybrid spinning and other functions

2:Intelligent control

Propulsion rate, propulsion liquid volume, propulsion time can be freely controlled.

3:Automatic liquid supply speed range

0.001~50mL/min

4:Adjustment precision

0.001mL/min

5:High voltage resistance level

50kV, can be used in high-voltage environment, reliable insulation system, not easy to break through.

6:Wide range of application

Applicable to syringe 1-50ml

Sample collection device

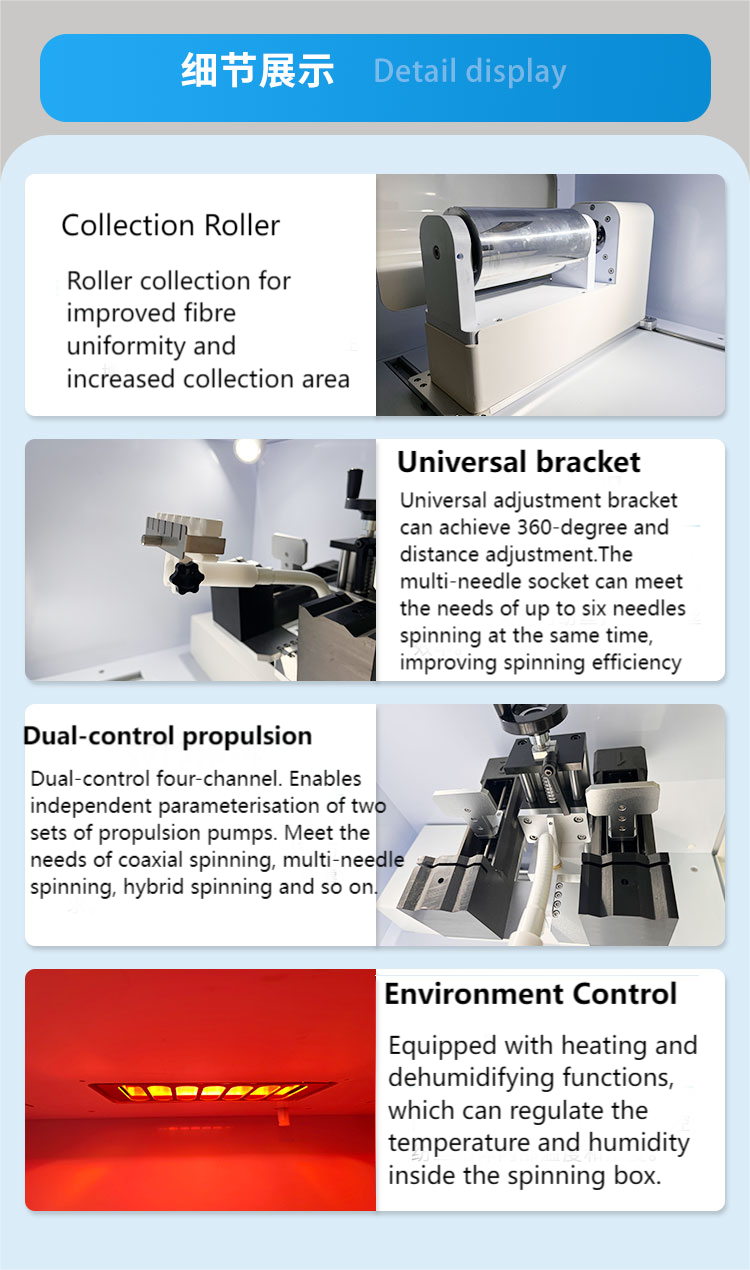

1:High speed collection drum

Diameter:100mm Length:200mm Speed range:200~4000rpm

The size of the collected sample is about the size of A4 paper. It can collect ordinary fibres and improve the uniformity of fibres, while high speed can collect ordered nanofibres.

2: Parallel collection

Commonly used collection device, corrosion-resistant stainless steel, size: 200*200mm

Nozzle three-axis motion system

1:X-axis manual displacement slide

Stroke range:50-250mm

2:Y-axis automatic reciprocating stage

Reciprocating stroke:0-200mm

Reciprocating speed:0-2500

Positioning accuracy≤0.01mm

Reciprocating distance, number of times and speed can be set.

3:Z-axis manual lift

Stroke range 0-100mm adjustable

4:Configuration expansion bracket

Adjustment angle 360 degrees, supplementary adjustment distance 150mm

Maximum number of clamping needles 6. Can realise parallel spinning, multi-needle spinning, coaxial spinning.

Environmental Control System

1: Humidity control

Built-in dehumidification module, effectively reduce the ambient humidity in the equipment, improve the spinning effect

2: Temperature control

Infrared and mild heating to increase the temperature and accelerate the solvent evaporation fibre forming.

3:Exhaust system

Built-in exhaust fan, can quickly replace the organic gas in the chamber, effectively avoid the discharge of the spinning head to ignite the organic gas.

4:Lighting System

With operating lamp, can observe the spinning process.

Intelligent control system

1:Touch screen control

10 inch human-machine interface CNC control

2:Intelligent control

Regulate the operation of high-voltage power supply, motion device, propulsion system, heating, exhaust, lighting and other components and monitor the status of each part.

3:Parameter memory

Spinning time can be set, automatically shut down the equipment to ensure safety with automatic parameter recording, saving function.

Safety Protection

1: Safety Protection

1:Equipped with discharge short-circuit protection, equipped with leakage protection

2:Grounding and static elimination system, to avoid electric charge accumulation caused by electric shock, fire, explosion and other accidents.

3:With inert gas access function.

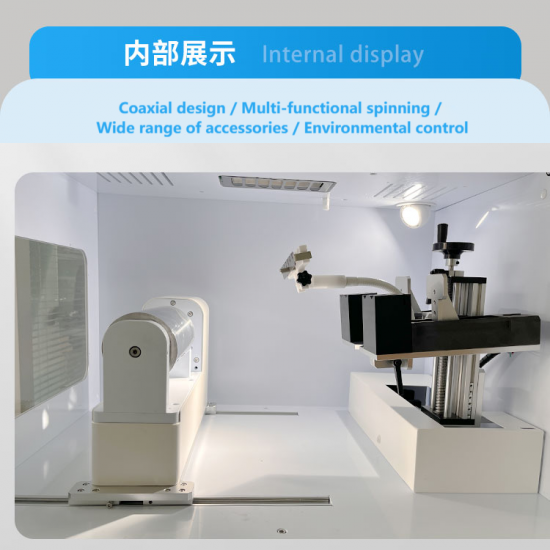

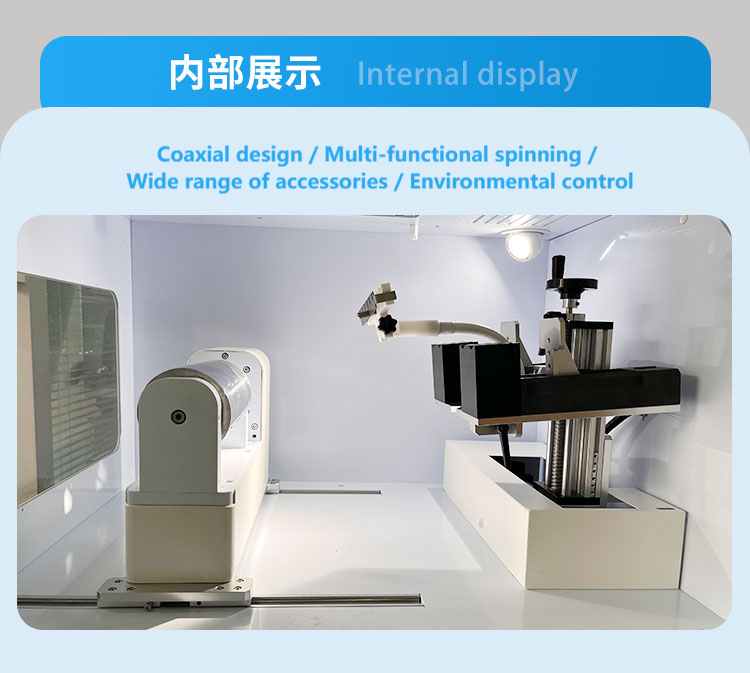

Spinning Chamber

1:Lift-up door system

Increase operating space

2:Box size

L*W*H(800mmx600mmx600mm)

3:Lighting system

Built-in 360-degree spotlight, convenient to observe the spinning experiments

4:Multi-face window

Three windows to observe the spinning condition from different angles.
