High Quality Open Rubber Mixing Mill Rubber Open Mill Machine

New Products
Latest News
Bioreactor: efficient and controllable core equipment for bioprocess

Bioreactor: efficient and controllable core equipment for bioprocess

With the rapid development of biotechnology and pharmaceutical industry, bioreactors, as core production equipment, are increasingly used in cell culture, enzymatic reaction, fermentation engineering ...


High Quality Open Rubber Mixing Mill Rubber Open Mill Machine-HANKER
High Quality Open Rubber Mixing Mill Rubber Open Mill Machine High Quality Open Rubber Mixing Mill Rubber Open Mill Machine High Quality Open Rubber Mixing Mill Rubber Open Mill Machine High Quality Open Rubber Mixing Mill Rubber Open Mill Machine High Quality Open Rubber Mixing Mill Rubber Open Mill Machine High Quality Open Rubber Mixing Mill Rubber Open Mill Machine

High Quality Open Rubber Mixing Mill Rubber Open Mill Machine

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616


  • Item No.:

    CRT-169

  • Product Origin:

    China

  • Shipping Port:

    Xiamen (Or any port in China)

  • Min Order:

    1

  • Lead Time:

    7-10 days

  • Compliance:

    CE

  • Minimum Order Quantity:

    1

  • Operation method:

    Semi automatic touch button

  • Screen:

    PLC control

  • Capacity:

    Customized

  • Voltage:

    220/110

  • Warranty:

    1 year

  • Delivery Time:

    6-8Day

  • Packaging Details:

    Standard export wooden box
contact now
Product Details

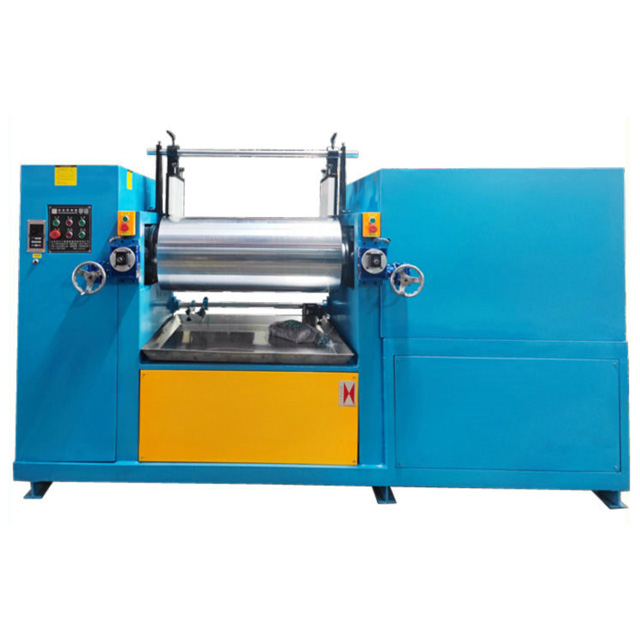

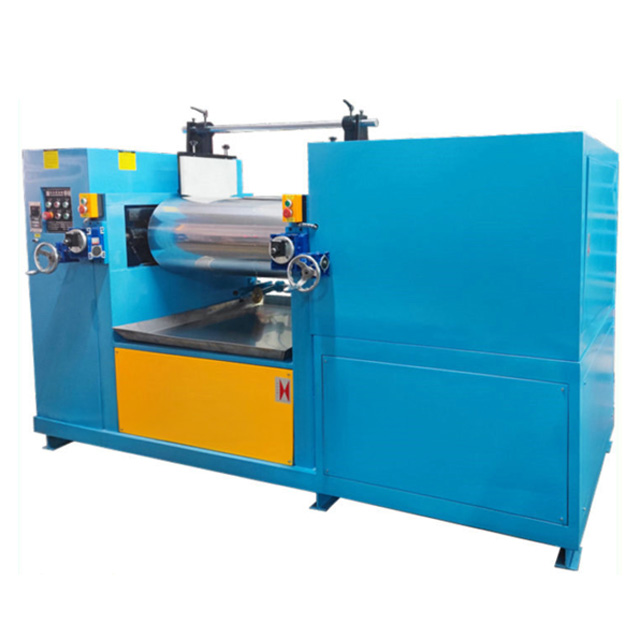

Two Roll Silicone Plastic Rubber Milling Open Mixing Mill Lab Mill Test Mill Test Open Mill

Application:

This 2 roller open mixing mill ensures the perfect and uniform blending silicone rubber with other raw materials such as pigment and vulcanizer agent. The open mixing mill can mix all the raw materials to the desired specifications.

Structural Features:

1. This open mixing mill can be equipped with hydraulic or mechanical device which can automatically make the rubber material be mixed over and over again. So the labor intensity and mixing time can be reduced greatly.

2. The open mixing mill speed reducer is planetary speed reducer, it is low noise, high efficiency, good transfer effect,

3. To ensure the safety of staff and equipment, we install convenient button for emergency.

4. All the open mixing mills we provide to you are checked after 3-7 hours non-stop full load operation, perfect quality and low noise. Customers can use them immediately after installation.


PRODUCT SPECIFICATION


Model
 ZG-160
 ZG-250
 ZG-360
 ZG-400
 ZG-450
 ZG-550
working diameter of rolls(mm)
 160
 250
 360
 400
 450
 550
working length of rolls(mm)
 320
 620
 900
 1000
 1200
 1500
linear speed of front roll(m/min)
 8
 14.9
 17.4
 19.3
 24.5
 27.2
linear speed ratio
 1:1.35
 1:1.7
 1:1.25
 1:1.27
 1:1.27
 1:1.29
max roll gap(mm)
 10
 10
 10
 10
 15
 15
gap regulating mode
 manual
 manual
 manual
 manual
 manual or electric
 manual or electric
batch capacity(kg/batch)
 1-2
 10-15
 20-25
 25-35
 25-50
 50-60
main motor power(kw)
 7.5
 18
 30
 37
 55
 90/110
speed reducer
 worm-gear
 ordinary or hardend-gear
 ordinary or hardend-gear
 ordinary or hardend-gear
 ordinary or hardend
 ordinary or hardend
overall size(mm)
 1080x796x1415
 3400x1350x1500
 3940x1780x1740
 4250x1850x1870
 5200x2380x1770
 6260x2330x1750
weight(kg)
 1100
 3500
 5670
 7600
 13000
 20000
Click on WhatsApp to query the quotation>>








SEND A MESSAGE：


WhatsApp: +8618030169616                                Tel.: +86 18030169616(Only supports mobile phone dialing)
Email: Jackson@crtopmachine.com                   Skype: +8618030169616

Add.: Haicang District, Xiamen , Fujian , China.



Related Tags : Roll Rubber Open Mixing Mill Open Mixer Mill Silicone Rubber Open Mixing Mill Open Type Mixing Mill
