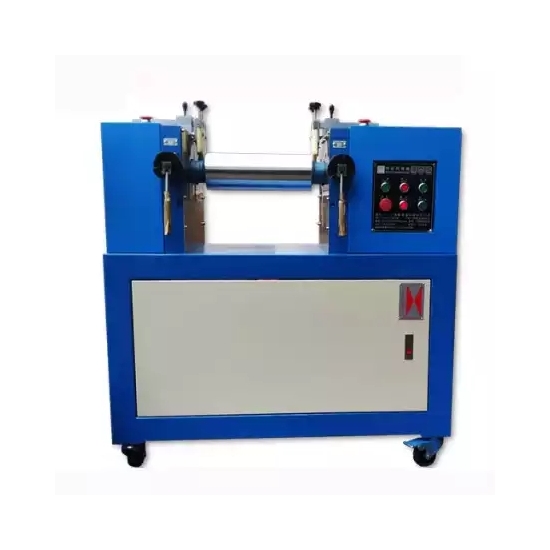

120 160 180 200 230 250 Rubber Plastic Mixing Machine Lab Rubber Two Roll Mill Price Two Roller Mixer

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616

  • Item No.:

    ZG-120L

  • Product Origin:

    China

  • Shipping Port:

    Xiamen

  • Min Order:

    1

  • Lead Time:

    T/T

  • Minimum Order Quantity:

    1

  • Operation method:

    PLC

  • Capacity:

    0.5-1kgs / 2-3kgs / 5-7 kgs

  • Speed:

    1 - 19 rpm

  • Voltage:

    AC380V, 15A

  • Warranty:

    1 year

  • Dimension(L*W*H):

    960*550*1150 mm
contact now
Product Details

Product Description


Technical Parameters

Model
ZG-120L
Capacity
0.2-1.8kg
Temperature
RT-300C
Heating method
Oil Heating
Accuracy of temperature control
±2C
Rotating speed of roller
19rpm
Roller speed ratio
1:1.3
Roller size
ф120mm×L 350mm (High hardness surface hard chrome
plating treatment, non-sticky material, no delamination)
Roller spacing
0～6mm adjustable

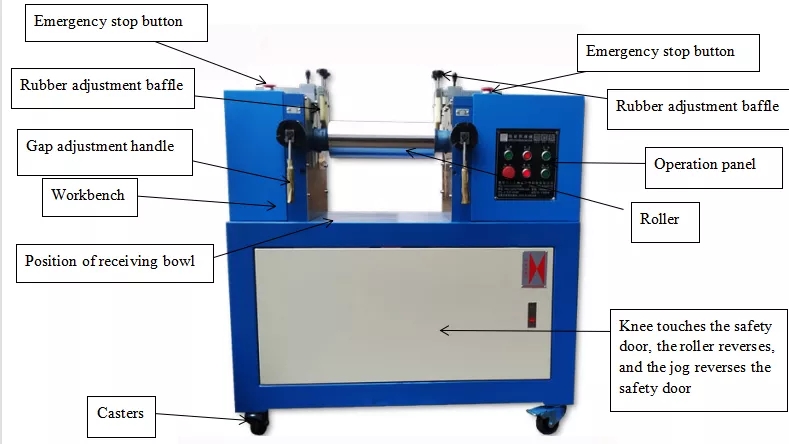

Safety devices
Multiple touch-type emergency stop devices
Motor
1.5KW (The output torque is as big as 7.5KW output torque
of traditional process mechanical transmission)
Power
18HP
Volume
1100×550×1380mm
Mechanical structure
Steel plate (lighter weight and smaller size than traditional
cast iron, higher mechanical strength and better toughness)
Weight
360kg
Feature

1. Construction of mill rolls: drilled roll, bored roll, grooved roll
2. We can design speed ratio as per customers' formula and processing requirements.
3. Frame, frame cap and base are welded and treated by annealing for stress relieving.
4. Rolls material is chilled cast alloy iron which hardness is reach to 70HB.
5. Brake and emergency stop device can ensure the safety of personnel and equipment.
6. Auto feeding oil or grease lubrication, it is easy to maintain and protect machine.
7. Human nature designed controlling system ensure labor safety.

8. Methods of adjusting roll nip: manual or electric

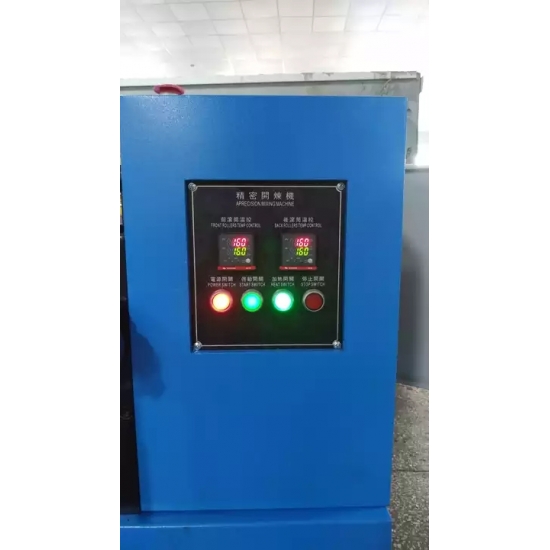

Intelligent control panel and PLC control system

1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current,
torque and recipe code.
2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.
3. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet
communication interface.
4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided
