Two Roll Rubber Sheet Open Mill Machine Open Mixer Mill-HANKER

Two Roll Rubber Sheet Open Mill Machine Open Mixer Mill

Two Roll Rubber Sheet Open Mill Machine Open Mixer Mill

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616

Item No.:
CRT-169
Product Origin:
China
Shipping Port:
Xiamen (Or any port in China)
Min Order:
1
Lead Time:
7-10 days
Compliance:
CE
Minimum Order Quantity:
1
Operation method:
Semi automatic touch button
Screen:
PLC control
Capacity:
Customized
Voltage:
220/110
Warranty:
1 year
Delivery Time:
6-8Day
Packaging Details:
Standard export wooden box

contact now

Product Details

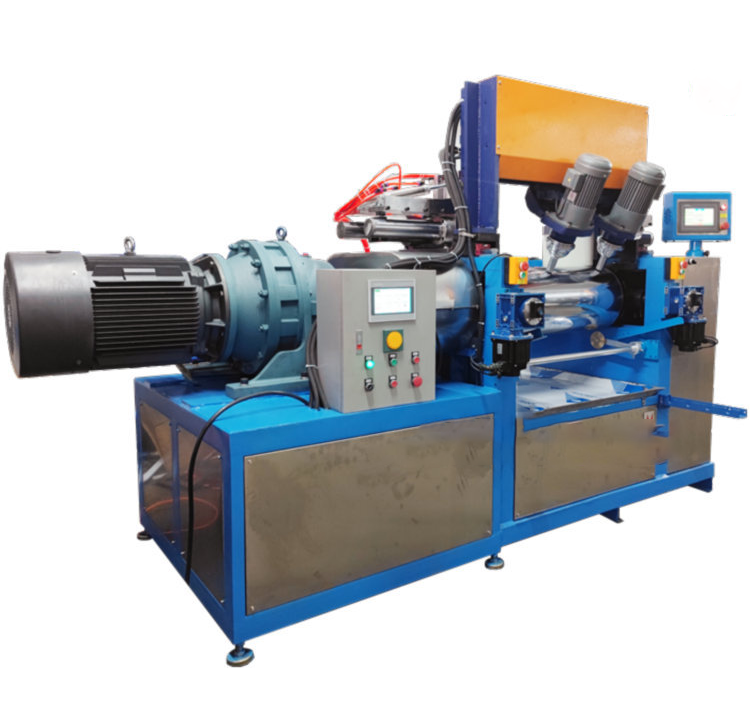

Two Roll Silicone Plastic Rubber Milling Open Mixing Mill Lab Mill Test Mill Test Open Mill

Application:

This 2 roller open mixing mill ensures the perfect and uniform blending silicone rubber with other raw materials such as pigment and vulcanizer agent. The open mixing mill can mix all the raw materials to the desired specifications.

Structural Features:

1. This open mixing mill can be equipped with hydraulic or mechanical device which can automatically make the rubber material be mixed over and over again. So the labor intensity and mixing time can be reduced greatly.

2. The open mixing mill speed reducer is planetary speed reducer, it is low noise, high efficiency, good transfer effect,

3. To ensure the safety of staff and equipment, we install convenient button for emergency.

4. All the open mixing mills we provide to you are checked after 3-7 hours non-stop full load operation, perfect quality and low noise. Customers can use them immediately after installation.

PRODUCT SPECIFICATION

Model	ZG-160	ZG-250	ZG-360	ZG-400	ZG-450	ZG-550
working diameter of rolls(mm)	160	250	360	400	450	550
working length of rolls(mm)	320	620	900	1000	1200	1500
linear speed of front roll(m/min)	8	14.9	17.4	19.3	24.5	27.2
linear speed ratio	1:1.35	1:1.7	1:1.25	1:1.27	1:1.27	1:1.29
max roll gap(mm)	10	10	10	10	15	15
gap regulating mode	manual	manual	manual	manual	manual or electric	manual or electric
batch capacity(kg/batch)	1-2	10-15	20-25	25-35	25-50	50-60
main motor power(kw)	7.5	18	30	37	55	90/110
speed reducer	worm-gear	ordinary or hardend-gear	ordinary or hardend-gear	ordinary or hardend-gear	ordinary or hardend	ordinary or hardend
overall size(mm)	1080x796x1415	3400x1350x1500	3940x1780x1740	4250x1850x1870	5200x2380x1770	6260x2330x1750
weight(kg)	1100	3500	5670	7600	13000	20000
