Laboratory 2L 5L 10L 20L 50L 100L Glass Reactor

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616


  • Item No.:

    OLT-RK-2L

  • Min Order:

    1

  • Model Number :

    OLT-RK-2L

  • Minimum Order Quantity:

    1

  • Power(W):

    90W

  • Capacity:

    2L

  • Use pressure:

    220V or 110V / 50-60HZ

  • Service temperature:

    -60 to 200°C

  • Lead Time:

    6-8 Day
contact now
Product Details

The jacketed glass reactor systems is the ideal equipment for mixing, reaction and distillation in chemistry and pharmaceutical industries.

A wide choice of volumes are available from 500mL to 200L. When working with heating / cooling circulators, the temperature inside the vessel can be gently and accurately controlled by thermal fluid circulation inside the jacket. This reaction vessel is rated to operate safely under full vacuum.

Model
OLT-RK-1L
OLT-RK-2L
OLT-RK-3L
OLT-RK-5L
Reaction Volume(L)
1L
2L
3L
5L
Jacket Volume(L)
0.5L
1L
1.5L
2L
Reactor Material
High quality borosilicate 3.3 glass
Support Frame Material
Stainless steel 304 and coated aluminum
Neck No. On Lid
5
Rated. torque(N.cm)
140
140
140
140
Motor power(W)
90
90
90
90
Rotating speed(rpm)
0 ~ 600 (customizable)
Power supply
220V or 110V / 50-60HZ
Discharge

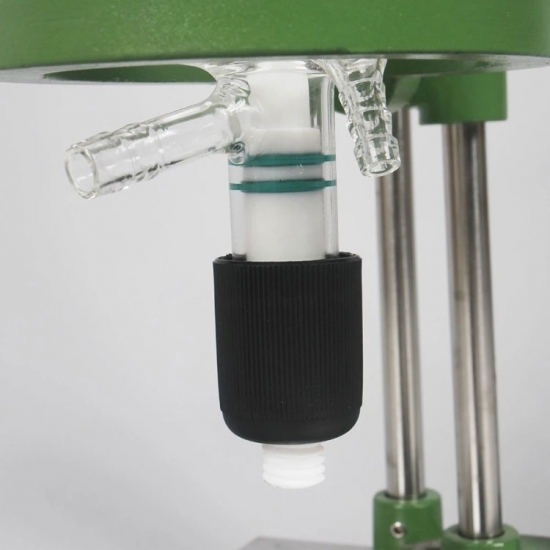

PTFE (Teflon) bottom discharge valve with no deadspace
Working Temp range
-60 to 200°C
Pressure Range
Full vacuum to atmosphere
Max jacket pressure
0.5 bar
Dimension
35x35x115 cm
40x40x125 cm
50x50x150 cm
50x50x155 cm
Net Weight
20 kg
21.5 kg
27 kg
30 kg

This system can be modified in our own factory quickly in case any customization is needed from us (dimension, motor power, explosion proof, additional glassware, custom port size, etc). Please contact us if any further details are needed.

Packaging:

-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.

Shipping method Note

Express

Door to door, very convenient, don't need to clearance or pick-up
By air

Airport to airport, you need to do the customs clearance and pick up  the

goods at your local airport, which you can have a local shipping agent to do for you.

By sea Port to port and you need to do the customs clearance and pick-up the goods

at your local port, which you can have a local shipping agent to do for you.
