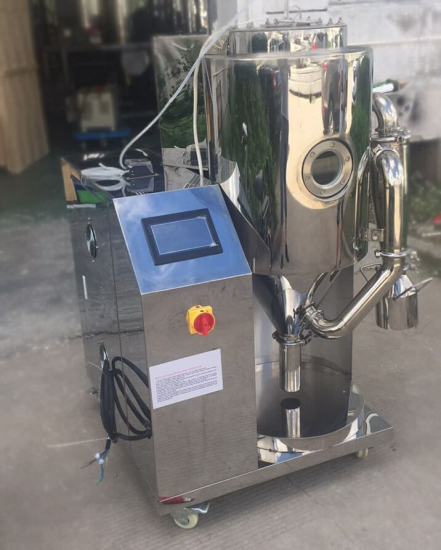

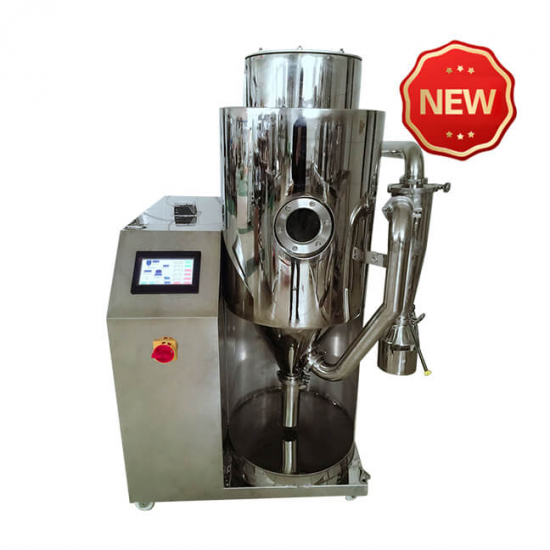

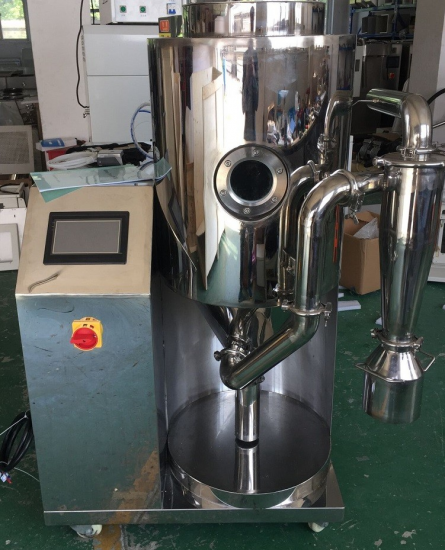

3000ml/h Lab Milk Spray Dryer Powder Machine

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616

Item No.:
OLT-SD03L
Product Origin:
China
Shipping Port:
Xiamen/Shanghai
Min Order:
1
Lead Time:
3-5 days
Compliance:
CE Certified
Minimum Order Quantity:
1
Operation method:
PLC control
Screen:
Touch Screen
Capacity:
3L/h
Voltage:
220V/50Hz
Warranty:
1 year

contact now

Product Details

Isolation equipment adopt high speed centrifuge spray drying technology, which is especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.

Parameter

Model	OLT-SD03L
Max capacity	1500-3000ml/h
Temperature range of Inlet air	30℃-300℃
Temperature range of outlet air	30℃ -140℃
Precision of temperature	± 1℃
Dryer time	1.0-1.5 S
Speed of squirmy pump	30-3000ml/h
Consume of dryer air	0-330m3 /h, max pressure: 686Pa
Consume of spray air	0-4.2m3 /h, spray pressure: 2-5bar
Spray system	2 liquid nozzles with standard 0.7mm jet options of 0.5/1.0/1.5/2.0/2.5mm
Spray direction	downwards co-current
Power	3.5KW 220V/50Hz
Dimensions	8007801450 ( mm ) LWH

Application

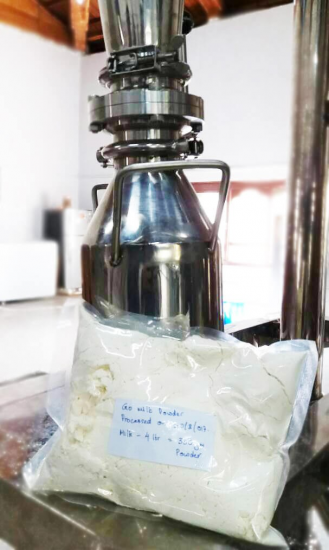

Spray dryer can be used in a wide range where the production of a free-flowing powder sample is required. This technique has processed materials in the following areas successfully:
Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.
Most solutions and supernsions can be spray dried providing that the resulting product has the characteristics of material.
It is popular in fields of Food, biology, material, pharmacy, university, and R&D institute, etc. especially for processing temperature-sensitive material , for e.g., powder, because material only touch air for a brief moment so that heat couldn't destroy the component of material.

Working Principle

Air through filtering and heating, enter the hot air distributor which is at the top of spray dryer, hot air spiraling evenly into the drying chamber. Liquid through the high-speed centrifugal automizer which is at the top of drying chamber, (rotating) centrifugal spray into tiny fog droplet, then contact with the hot air flow, drying finish product in a very short time and whereabouts. Finished product output continuously between the drying tower bottom and cyclone separator, exhaust through dust catcher emptying by induced draft fan.

Packing & Shipping
