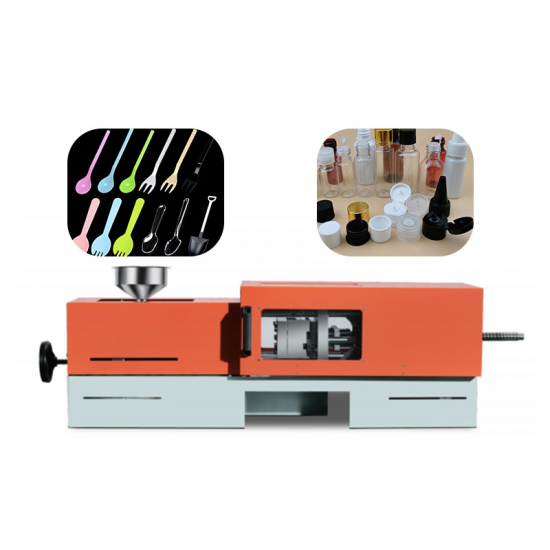

CRTOP Brand Small Horizontal Type Plastic Injection Moulding Machine

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616

Item No.:
CRT-XPM-17
Product Origin:
Fujian
Shipping Port:
Xiamen/Shanghai
Min Order:
1

contact now

Product Details

Product Description

This machine is small version of production machine. It is small, Easy to move, suitable for classroom teaching and small sample making.
The product includes mold clamping parts, sol injection parts, the host body, heating system, control system and feeding charging device.
This machine has the advantages of simple structure, easy handling, electricity and raw material saving, non-noise and non-pollution, can be used at any places with 220V power supply.

Product Specification

Model	XPM-12	XPM-17
Product Name	Small desktop injection molding machine
Clamping force	12T	15T
Voltage	Single phase, 220V 50Hz/60Hz
Machine Size	1300400450mm	1400475550mm
Machine weight	145kg	225kg
Screw diameter	18mm	22mm
Nozzle diameter	2mm	2mm
Mold opening stroke	75mm	125mm
Max. production weight	30g	40g
Maximum mold installation size	200120150mm	175250170mm
Temperature range	0-400C
Applicable materials	PP, PE, PVC, ABS, PC, PA6, PS, PEI, PIMMA, TPU, PTE etc.

Product Details

Product Images

Product Packaging

SEND A MESSAGE：

WhatsApp: +8618030169616 Tel.: +86 18030169616(Only supports mobile phone dialing)
Email: Jackson@crtopmachine.com Skype: +8618030169616

Add.: Haicang District, Xiamen , Fujian , China.
