Electric Heating Continuous Stirred Tank Glass Reactor

Lab Electric Heating Continuous Stirred Tank Glass Reactor

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616

Item No.:
OLT-RK-3
Product Origin:
China
Shipping Port:
Xiamen/Shanghai
Min Order:
1
Model Number :
OLT-RK-3
Minimum Order Quantity:
1
Power(W):
60W(Stirring Power)
Capacity:
3L
Service temperature:
RT-250
Lead Time:
6-8Day

contact now

Product Details

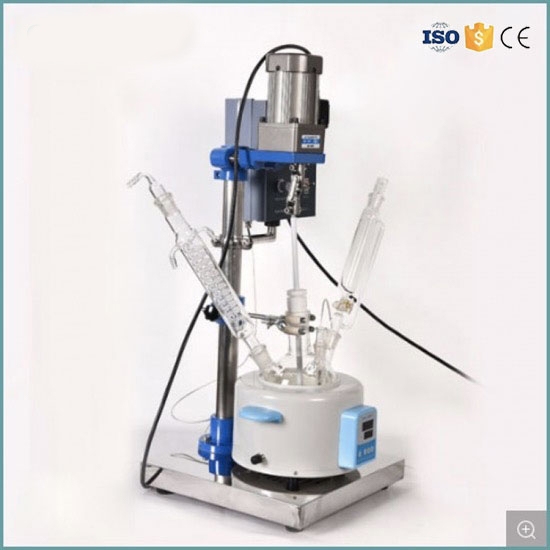

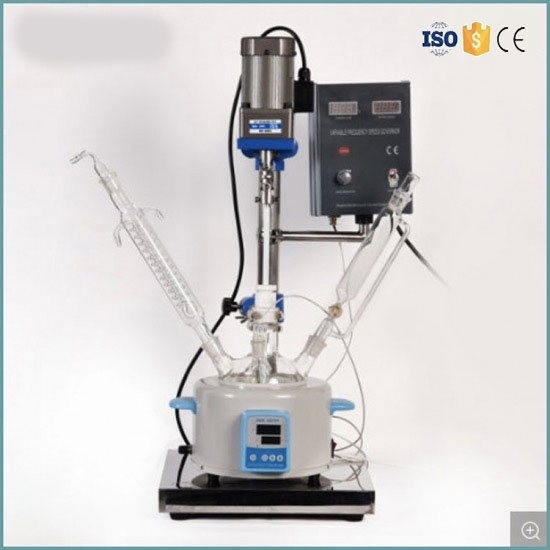

Glass Reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.

Circulating water vacuum pump can pump into the reactor sorts of liquids and gases. The reflux or distillation is possible under different temperature state.
The single layer glass reactor has water/oil heating bath or heating mantle itself. Water/oil bath temperature is digital display, which can meet constant temperature state, fast temp. rising, accurate controllers.1-50L is circular and more than 50L is cylinder. After heating we can add the cooling coil in the tank to cool the material in short time.

Model	OLT-RK-1	OLT-RK-2	OLT-RK-3	OLT-RK-5	OLT-RK-10	OLT-RK-20	OLT-RK-30	OLT-RK-50	OLT-RK-100
Voltage(V/Hz)	220 50/60								380 50/60
Stirring Power(W)	60				120				180
Stirring Speed(rmp)	0-1000				60~600
Capacity(L)	1	2	3	5	10	20	30	50	100
Heating Power(kW)	0.5	0.8	1.2	1.5	3	4.5		6	9
Heating Mantle Power (kw)	0.53	0.65	0.73	1.1	2.1	3	3.8	5	......
Temperature Using Range(ºC)	RT-250 \| RT-350
Motor Torque(g/cm)	2000	2400		4800	1000	1200		1500	3000

1.High borosilicate glass with nice physical-chemical properties; experiment temperature -100 to 400 degree C; Resistant to strong acidic properties of materials; only touching with glass parts & PTFE, no cross-contamination.

2.Precision Mechanical seal stirring to keep high vacuum degree.

3.Glass(PTFE)discharge valve, no-dead angle mixing, fast no residue discharge.

4.Frequency control speed gear motor, smooth running,high torque, automatic booster , no spark, noise free, long life.

5.SUS frame and cast aluminum material kettle body support, simple as well as strong; stable structure

6.Circulating water/oil bath, heating mantle can supply the heating origin; Cooling mode machine:cool chiller, convenient and practical

7.Scientific & innovative structure, practical, strong.
Heating principle:
The heating coil in the tank heat the transfer medium-water or oil directly,(heating mantle heat the body kettle). Then the hot water or oil pass its hot energy to material in the kettle and stirring at the same time.
Ancillary equipment:
Circulating water vacuum pump: Used to provide a vacuum source.
Cool chiller: Reflux, condensation and cool the material

Packaging:
-After use cartons inside, outside with wooden case packaging;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,TNT,EMS,FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
