1100℃ Ni-Based Super-Alloy High Pressure Reactor

Lab 1100℃ Ni-Based Super-Alloy High Pressure Reactor

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616

Item No.:
OLT-HP-1100
Product Origin:
China
Shipping Port:
Xiamen/Shanghai
Min Order:
1
Model Number :
OLT-HP-1100
Minimum Order Quantity:
1
Capacity:
300mL
Use pressure:
3MPa
Service temperature:
≤1100℃
Lead Time:
6-8Day

contact now

Product Details

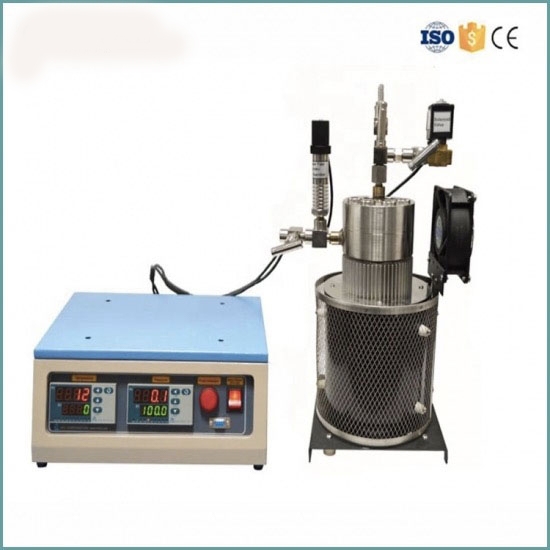

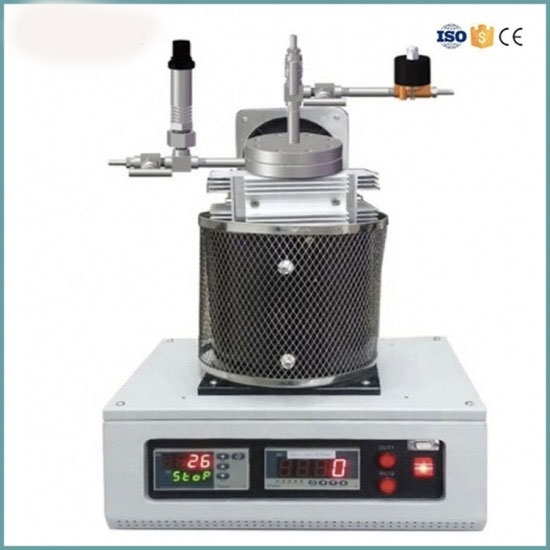

OLT-HP-1100 is a 100mL reactor made of Ni-based Superalloy, which has excellent creep strength and anti-oxidation. It can reach 1100 °C with a pressure up to 3 MPa under oxygen or inert gases. It is an ideal tool for preparing advanced material by the hydrothermal method, especially for heat treatment of sample under high oxygen pressure. A solenoid valve is installed on the flange for automatic pressure relief control. Temperature control and pressure monitoring software are included for remote control.

Model Numbe	OLT-HP-1100
Input Power	Input voltage: AC 108~240V, 50/ 60Hz, single phase Power: 1.5KW
Pressure Vessel	(1) Ni-based superalloy hydrothermal reactor with 300mL capacity. (2)Made of Ni-based superalloy GH747 (3) Reactor size: 70mm( OD) * 25mm( ID) * 210mm( H) (4) Air cooled flange via aluminum heat radiator (5) A small quartz or alumina boat should be used to load the sample inside the reactor, which increases vessel service life. (6) Gold or Ni foil can be used to wrap the crucible boat to minimize contamination to vessel
Working pressure	18MPa ≤800℃ 13MPa ≤900℃ 8MPa ≤1000℃ 3MPa ≤1100℃
Temperature Control and Heater	Limiting temperature: 1100℃ Working temperature: 1000℃ Heating zone length: 330mm Constant temperature zone: 80mm within ±1℃ Heating element: Fe-Cr-Al alloy Thermocouple: K type Program: Digtial temperature controller, 30 programmable segments and ±1℃ accuracy
Size	340mm( W) * 320mm( D) * 820mm( H)
Net weight	35KG
Warranty	One year limited warranty with lifetime support

Pressure Monitoring and Relief:

(1) Precision high pressure sensor (measurement range up to 25 MPa, or 250 bar) is installed on the pressure vessel. The pressure monitor displays pressure in bar

(2) Pressure monitor allows the user to set a high pressure alarm. When the pressure reaches the alarm set point (15 MPa max), alarm will sound and the pressure will be released via a solenoid valve on the flange. For using the reactor with a pressure > 15 MPa at low temperature, please shut off the needle valve near the solenoid valve and use the manual pressure relief valve

Packing and Shipping

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
