Stainless Steel Hydrogenation Reaction High Pressure Reactor

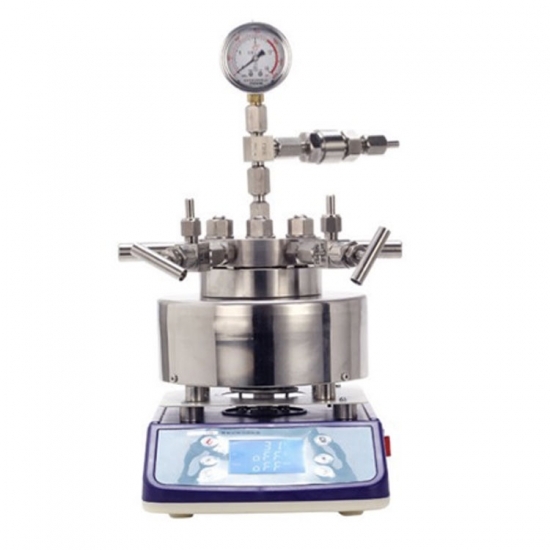

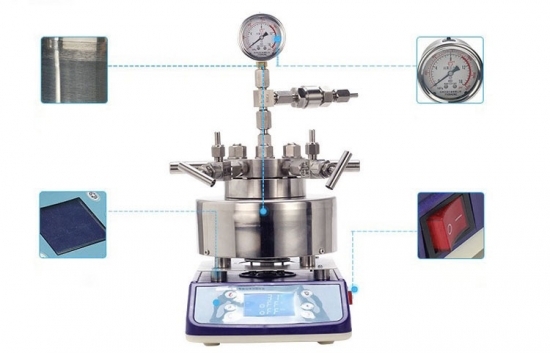

Lab 10ml-200ml Stainless Steel Hydrogenation Reaction High Pressure Reactor

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616

Item No.:
OLT-RE-100ML
Product Origin:
China
Min Order:
1
Model Number :
OLT-RE-100ML
Minimum Order Quantity:
1
Power(W):
108V-240V 50/60HZ
Capacity:
100ml
Lead Time:
6-8 day
Warranty:
1 year

contact now

Product Details

Lab 10ml-200ml Stainless Steel Hydrogenation Reaction High Pressure Reactor

1.Volume: 25 ml, 50 ml, 100 ml, 200 ml, 500 ml for custom-ordering.
2.Body material: stainless steel 316L/pure titanium/hastalloy material (optional)
3.Working temperature: 250 ℃ / 450 ℃ (optional)
4.Working pressure: 10 MPa / 60 MPa (optional)
5.Valve and connection materials: SU316L stainless steel
6.Reactor liner: PTFE, PPL, quartz glass (optional), liner has advantages of strong anti-corrosion, easy to disassemble and convenient to clean, etc.
7.Optical window material: adopted polishing JGS2 quartz glass (pressure-proof window) or sapphire mirror
8.Optical window diameter: 30 mm - 60 mm (optional)
9.Temperature-control heating device and uniform heat transfer design
10.Gas inlet function
11.Online temperature and online pressure display
12.Strong magnetic stirring function under bottom (users can choose our company’s overhead mechanical stirring method in case of high viscosity or large granular solid materials optionally).
13.There has auxiliary cooling or heating function in reactor.
14.With a high precision adjustable auto-decompression protection
15.Two or more online charging function under high temperature and high pressure (optional)
16.With the gas phase, liquid phase online detection connection pipe.

Specifications and Technical Parameters

Model	Dimension	Volume	Connection type	Intelligent safety valve	Display precision
OLT-RE-25ML	Φ40*60	25ml	Flange	Yes	±1℃
OLT-RE-50ML	Φ60*80	50ml	Flange	Yes	±1℃
OLT-RE-100ML	Φ80*120	100ml	Flange	Yes	±1℃
OLT-RE-200ML	Φ80*140	200ml	Flange	Yes	±1℃
OLT-RE-500ML	Φ100*240	500ml	Flange	Yes	±1℃
OLT-RE-1000ML	Φ168*280	1000ml	Flange	Yes	±1℃
OLT-RE-2000ML	Φ240*320	2000ml	Flange	Yes	±1℃

This product is used for chemistry and chemical engineering synthetic reaction under high temperature and high pressure or catalytic reaction, and such environmental conditions that needs to measure the pressure, temperature, and measuring speed at the same time, and add inert gas protection, pacify pressure and realize online-sampling or online feeding.

It is widelu used for the flammable and explosive, highly toxic, precious media and other highly permeable chemical medium for stirring reaction. Used in the process of vulcanization and fluoridation of petroleum, chemical, organic synthesis, polymer polymerization, Hydrogenation and other non-leakage reactions. With super magnetic stirring function and program temperature control functions

.jpg

Packing and Shipping

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent

Packaging Delivery.jpeg
