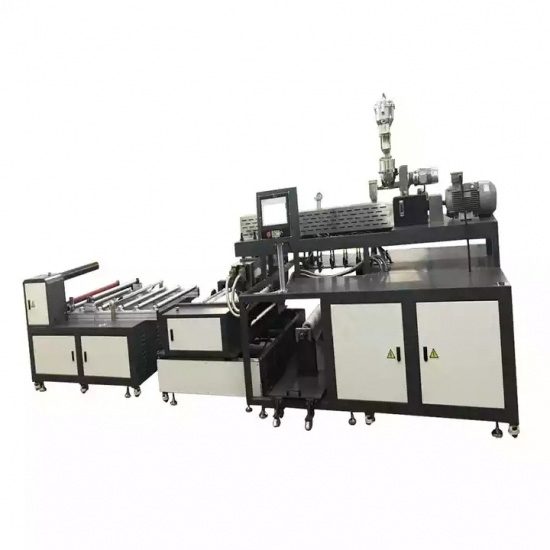

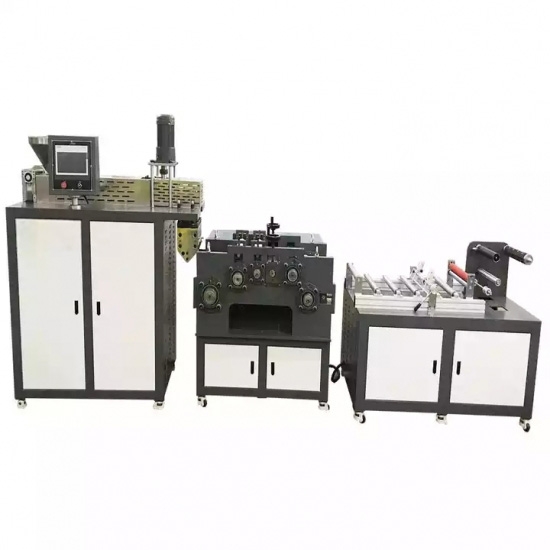

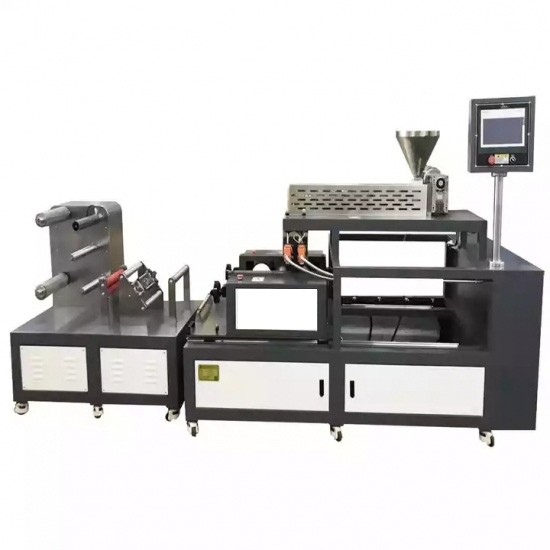

Lab Cast Stretch Film Extrusion Machine with Twin Screw Extruder Film Casting Line PP PE PET Sheet Cast Film Extrusion Machine

Product Description:

Extrusion blown film refers to the bi-fold plastic film obtained by continuously extruding the plastic melt through the die under the action of a certain temperature and a certain shearing force, which is inflated by compressed air, cooled by an air ring and traction by frequency conversion. crafting process. This machine is mainly used to detect the feasibility of blown film of polymer materials and the colloidal condition in the material, as well as the dispersion of colored dispersions, control mixtures, and extrudates. Machine applicable materials: HDP, LDPE, LLDPE blown film grade PP + masterbatch, filler masterbatch, plastic additives, functional masterbatch

The feature for dispersion kneader:

1. The extruder is driven by an international brand variable frequency motor, which has stable plasticization and good consistency;

2. Extrusion device: The barrel and screw are the key parts of the machine, and the plasticization and extrusion of materials are carried out here. The barrel and screw are made of high-quality nitrided steel 38CrMoALA. The surface has undergone a week of gas nitriding treatment. It has good mechanical properties such as high hardness, wear resistance and corrosion resistance, which greatly extends its service life.

3. The barrel heating of this machine adopts cast aluminum heater and stainless steel air hood, which is beautiful and energy-saving, good heat resistance, long service life, uniform heat transfer, and easy to replace; the fan is cooled through the set channel (automatically open the fan for cooling when the temperature is over ), the cooling effect is good.

4. Transmission device: the drive motor is directly connected with the reducer, and the output shaft of the reducer is connected with the screw to drive the screw to rotate. The transmission device has compact structure, stable operation and strong bearing pressure.

5. Emergency shutdown device and various safety protections to ensure the safety of operators;

6. Highly intelligent and easy to operate.

Technical Parameters
