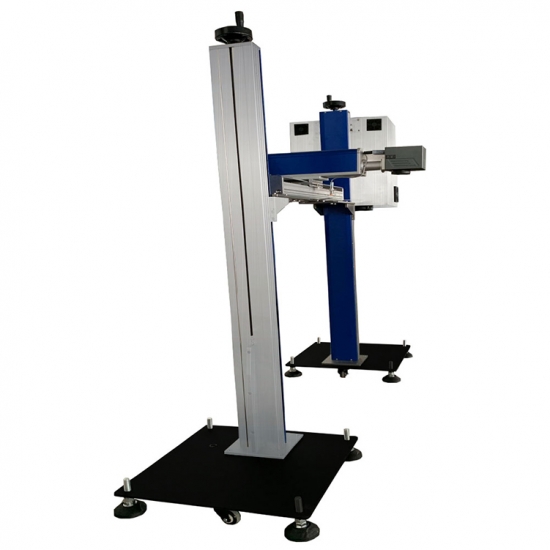

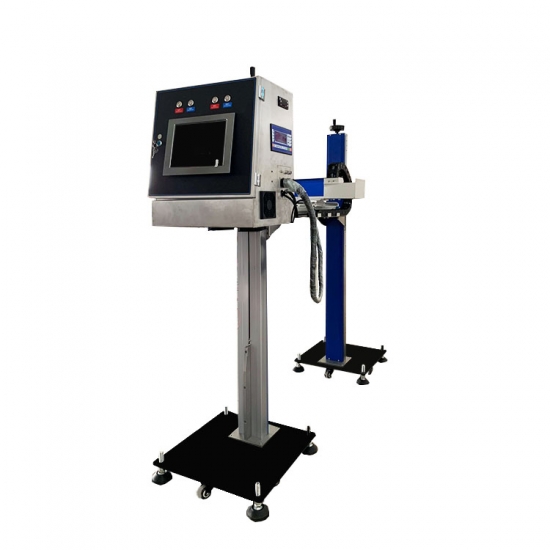

Laser Printer For Pipe Production Line Double-out PVC Pipe

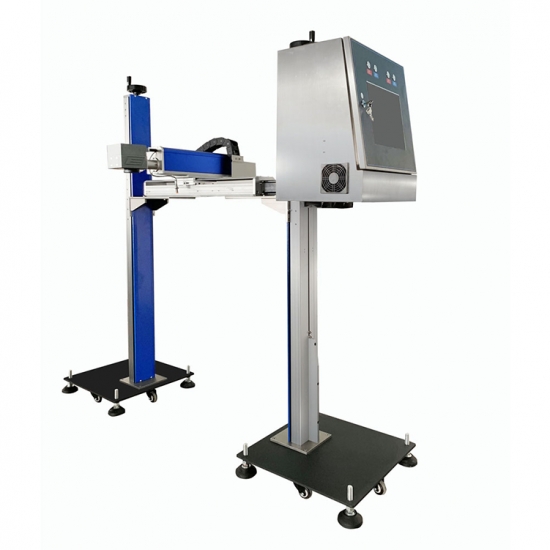

High Quality 30w Fiber Laser Printer For Pipe Production Line Double-out PVC Pipe Profile Flying Laser Marking Machine

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616

Product Origin:
China
Shipping Port:
Xiamen/Shanghai
Min Order:
1
Voltage:
30watt
Warranty:
1

contact now

Product Details

Product Description

Specification

Rail Length		500mm~3000mm(can be customized)
Repetitive Accuracy		0.001mm
Laser Type		Fiber
Laser Wavelength		1.06μm
Beam		<1.4M2
Laser Power		30W
Cooling method		Air cooling
Marking area		110mm×110mm/175mm×175mm
Focal distance		170mm
Min line-width		0.15mm
Min character		0.7mm
Marking speed		0-7000mm/s
Graphic format supported		PLT
Voltage		AC220V±10%
Fraquency		50HZ/60HZ
Machine dimension		450mm×450mm×1300mm
Machine weight		80Kg(Estimate)
Working environment		Temperature:0~45℃, Humidity: 5%~95% non-cindensing water, no dust or dust less temperature
Power		500W
Class of safety protection		IP54
Laser safety level		Level 4
Adjustable height direction		0-450mm
Front and back direction adjustable distance		0-250mm
Marking angles		0°, 45°, 90°, 180°

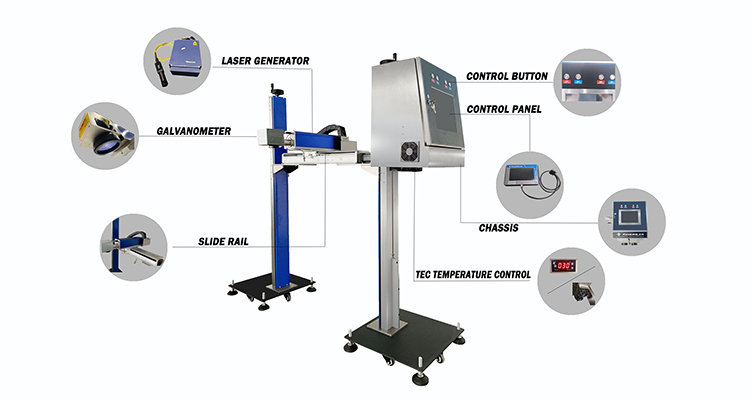

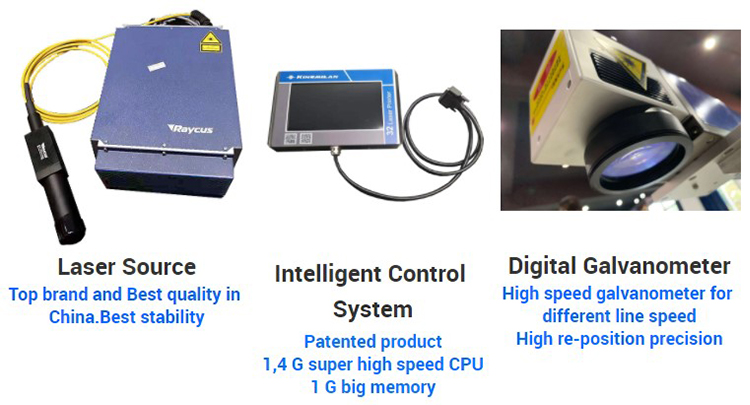

Product details

Product features

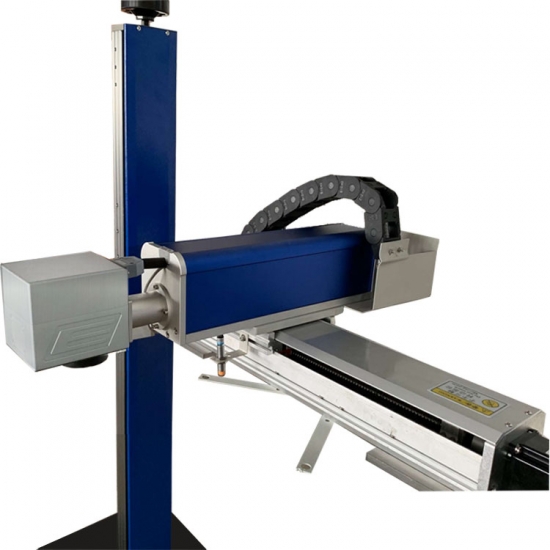

1.Efficiency: High precision guide rail make the work more efficient and smoothly.

2.Super Large Sliding Range: Customized Sliding Range,meeting different printing requirements.

3.Easy Operation: Complete Training video and manual, 24 hours online service

4.Long Service Life: 10 years long lifetime, 100000 hours working life without maintenance

5.High Precision: Re-position precision is 0.001 mm

6.Air Cooling System: Adopts Air Cooling,better cooling effect than other cooling method

7.Different Printing Format:Including text,graphic,pictures,serial number,bar codes.

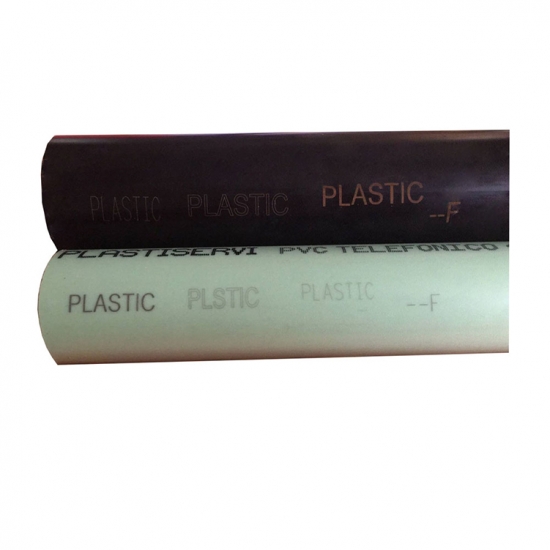

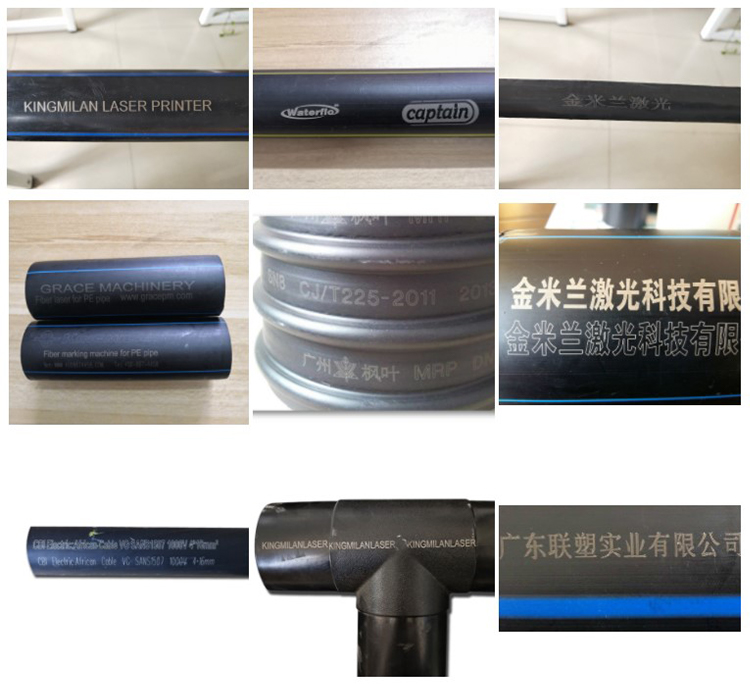

Application

SEND A MESSAGE：

WhatsApp: +8618030169616 Tel.: +86 18030169616(Only supports mobile phone dialing)
Email: Jackson@crtopmachine.com Skype: +8618030169616

Add.: Haicang District, Xiamen , Fujian , China.
