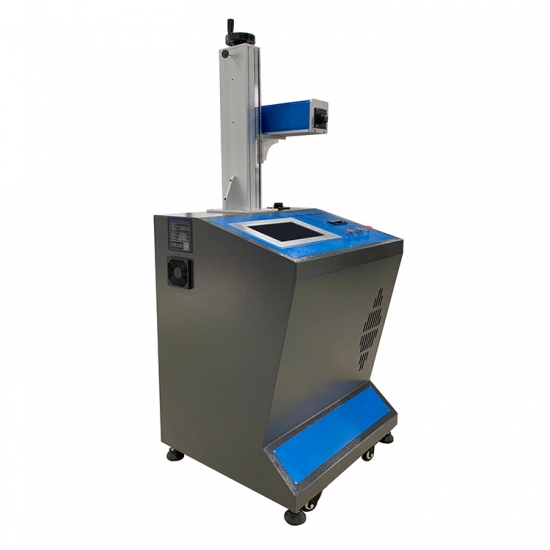

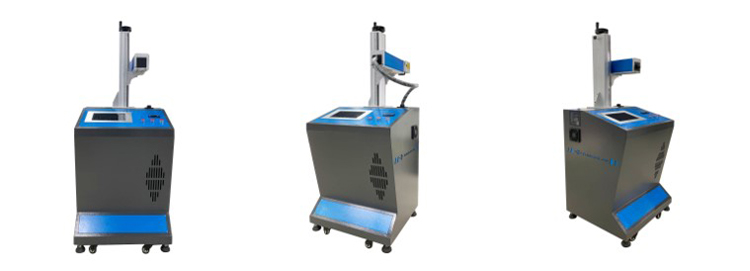

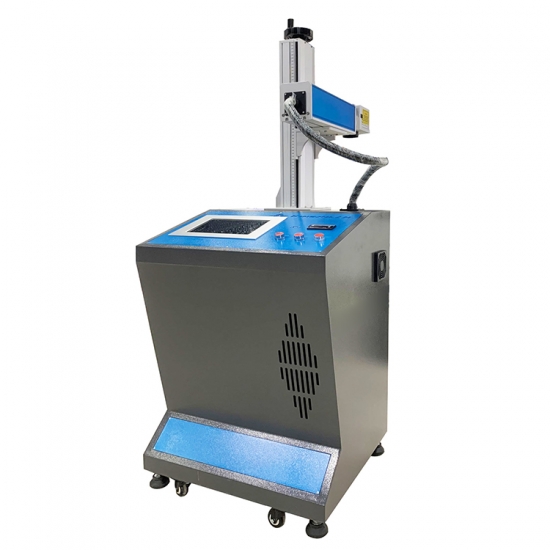

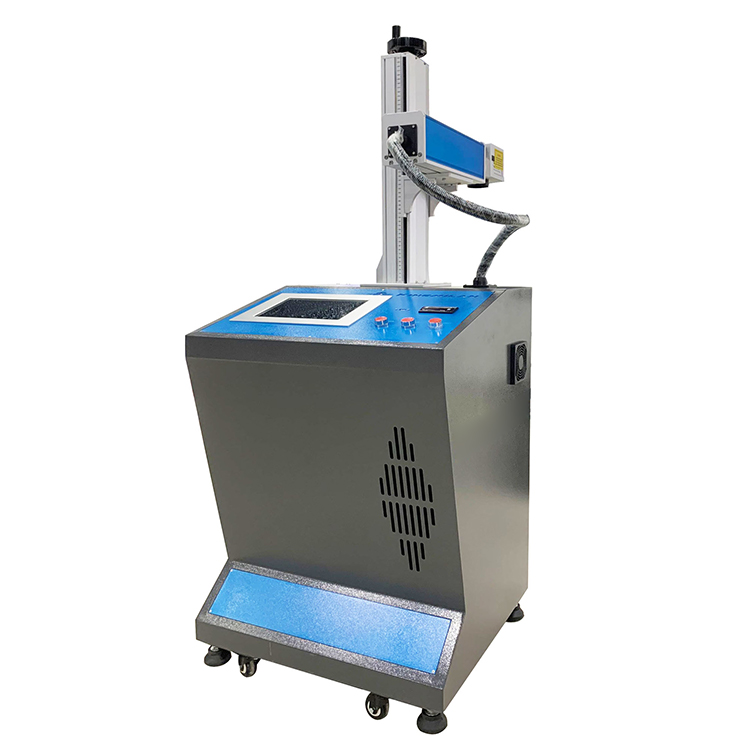

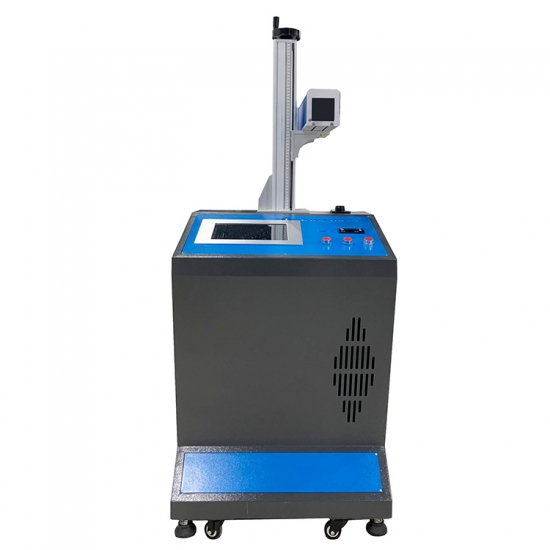

Fiber Laser Marking Printing Machine for Plastic 20w 30W 50W

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616

Product Origin:
China
Shipping Port:
Xiamen/Shanghai
Min Order:
1
Voltage:
20W/30W/50W
Warranty:
1 year

contact now

Product Details

Product Description

Laser Type	Fiber
Laser Wavelength	1.06μm
Beam	＜1.4M²
Laser Power	20W/30W/50W
Cooling method	Air cooling
Marking area	110mm×110mm/175mm×175mm
Focal distance	170mm
Min line-width	0.15mm
Min character	0.7mm
Marking speed	0-7000mm/s
Graphic format supported	PLT
Voltage	AC220V±10%
Frequency	50Hz/60Hz
Machine dimension	450mm×450mm×1300mm
Machine weight	80Kg （Estimate)
Work environment	Temperature: 0~45°C; Humidity: 5%-95% non-condensing water, no dust or dust less temperature
Power	1KW
Class of safety protection	IP54
Laser safety level	level 4
Adjustable height direction	0-450mm
Front and back direction adjustable distance	0-250mm
Marking angles	0°，45°，90°，180°
