High-efficiency reactor is one of the indispensable and important equipment in the chemical production process. It plays a key role in improving chemical reaction efficiency, optimizing production processes, and improving product quality. This article will introduce the working principle of high-efficiency reactor and analyze its application in the chemical industry through specific cases to provide reference for practitioners.

1. Working principle of high-efficiency reactor

            High-efficiency reactor is mainly used for material mixing, reaction, heat transfer and mass transfer in chemical reaction process. Its basic structure includes reactor body, stirring system, heating and cooling system, sealing device, etc. Through precision design and advanced manufacturing technology, high-efficiency reactor can achieve efficient and uniform reaction process in a short time, reduce the generation of by-products and improve reaction efficiency.

1.  Reactor body design
   The reactor body is usually made of high-strength stainless steel or other corrosion-resistant materials, with good high temperature and high pressure resistance. Agitator and flow guide device are installed inside to ensure the full mixing of materials during the reaction process.


2.  Stirring system
   The stirring system consists of a stirrer, a drive device and a sealing device. The shape and speed of the stirrer can be adjusted according to the characteristics of different reactants to achieve the best mixing effect.


3.  Heating and cooling system
   The high-efficiency reactor is equipped with an advanced heating and cooling system, which accurately controls the temperature of the reactants through a jacket or built-in heat exchanger to ensure that the reaction is carried out under the optimal temperature conditions.


4.  Sealing device
   The sealing device adopts advanced mechanical sealing or magnetic sealing technology to effectively prevent material leakage and contamination, and ensure the safety and stability of the reaction process.


2. Application cases of high-efficiency reactors in the chemical industry

Application Case 1:  Organic Synthesis Reactions in Chemical Enterprises

Background: In 2023, ChemPro Inc., a large chemical company located in Texas, USA, encountered some challenges in its production process. The company is mainly engaged in the production of organic chemicals. When traditional reactors are used for complex organic synthesis reactions, the reaction efficiency is low and the product purity is difficult to guarantee.

Challenge: Production Manager Michael Johnson found that the traditional reactors have slow heating speed and imprecise temperature control, resulting in long reaction time and unstable product purity. In addition, the reactors are frequently cleaned and maintained, which takes up a lot of production time and labor costs.

Solution: After market research, Michael chose the CRT-HP series high-efficiency reactor produced by our company. The reactor uses an advanced jacketed heating system that can quickly and evenly heat the reactants. At the same time, it is equipped with a precise temperature control system that can achieve a temperature control accuracy of ±0.1℃.

Implementation process: In April 2023, our technical team went to Texas to install and debug the CRT-HP series high-efficiency reactor for ChemPro Inc. The entire installation process took only two weeks, and the operators were trained in detail.

Results: After the new equipment was put into use, the time for organic synthesis reactions was shortened by 30%, and the product purity was increased by 15%. At the same time, the automatic cleaning system of the reactor greatly reduced the time for cleaning and maintenance, and the production efficiency was significantly improved. Michael was very satisfied with the performance of the equipment and our service.

Application Case 2:   Polymerization reaction in a medium-sized chemical plant

Background: In 2023, PolyChem Ltd., a medium-sized chemical plant located in Ohio, USA, focused on the production of polymer materials. During the polymerization reaction, the company often encountered problems such as uneven reaction and inconsistent product molecular weight distribution, resulting in large fluctuations in product quality.

Challenge: Lisa Robinson, production supervisor, found that the traditional reactor had poor stirring effect and could not achieve efficient mixing and uniform reaction conditions. In addition, the temperature fluctuation of the reactor was large, which affected the stability of the polymerization reaction.

Solution: Lisa learned about our company's high-efficiency reactor through an industry exhibition in January 2023. After many communications and technical exchanges, we recommended the CRT-HP series reactor with an efficient stirring system and precise temperature control function.

Implementation process: In May 2023, our team of engineers went to Ohio to install and debug the CRT-HP series high-efficiency reactor for PolyChem Ltd. We also customized a dedicated reaction process for them to ensure the optimal operation of the equipment.

Results: After the new equipment was put into use, the uniformity of the polymerization reaction was significantly improved, the molecular weight distribution of the product was more consistent, and the product quality stability was improved by 20%. At the same time, the efficient stirring system of the reactor reduced the reaction time and improved production efficiency. Lisa highly recognized our products and technical support.

3.Advantages of high-efficiency reactors

1.  Improve reaction efficiency
   The high-efficiency reactor can achieve efficient and uniform reaction in a shorter time through optimized stirring and temperature control systems, reduce reaction time and improve production efficiency.


2.  Improve product quality
   Precise temperature control and uniform material mixing can help reduce the generation of by-products and improve product purity and quality consistency.


3.  Reduce production costs
   The high-efficiency reaction capacity and stable performance of the high-efficiency reactor can significantly reduce the consumption of raw materials and energy and reduce production costs.


4.  Enhance safety
   Advanced sealing devices and automated control systems can effectively prevent material leakage and contamination, ensuring the safety and stability of the production process.


4. How to choose a suitable high-efficiency reactor

The following aspects need to be considered when choosing a suitable high-efficiency reactor:

• Production requirements: Select the appropriate equipment model and specifications according to the production scale and process requirements.


• Material selection: Select the appropriate kettle material according to the characteristics of the reactants, such as stainless steel, titanium alloy, etc.


• Temperature control system: Select a heating and cooling system with precise temperature control capabilities to ensure that the reaction is carried out under optimal temperature conditions.


• Stirring system: Select the appropriate stirrer type and speed according to the material characteristics and reaction requirements.


• Safety: Select equipment equipped with advanced sealing devices and automated control systems to ensure the safety of the production process.

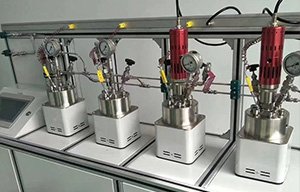

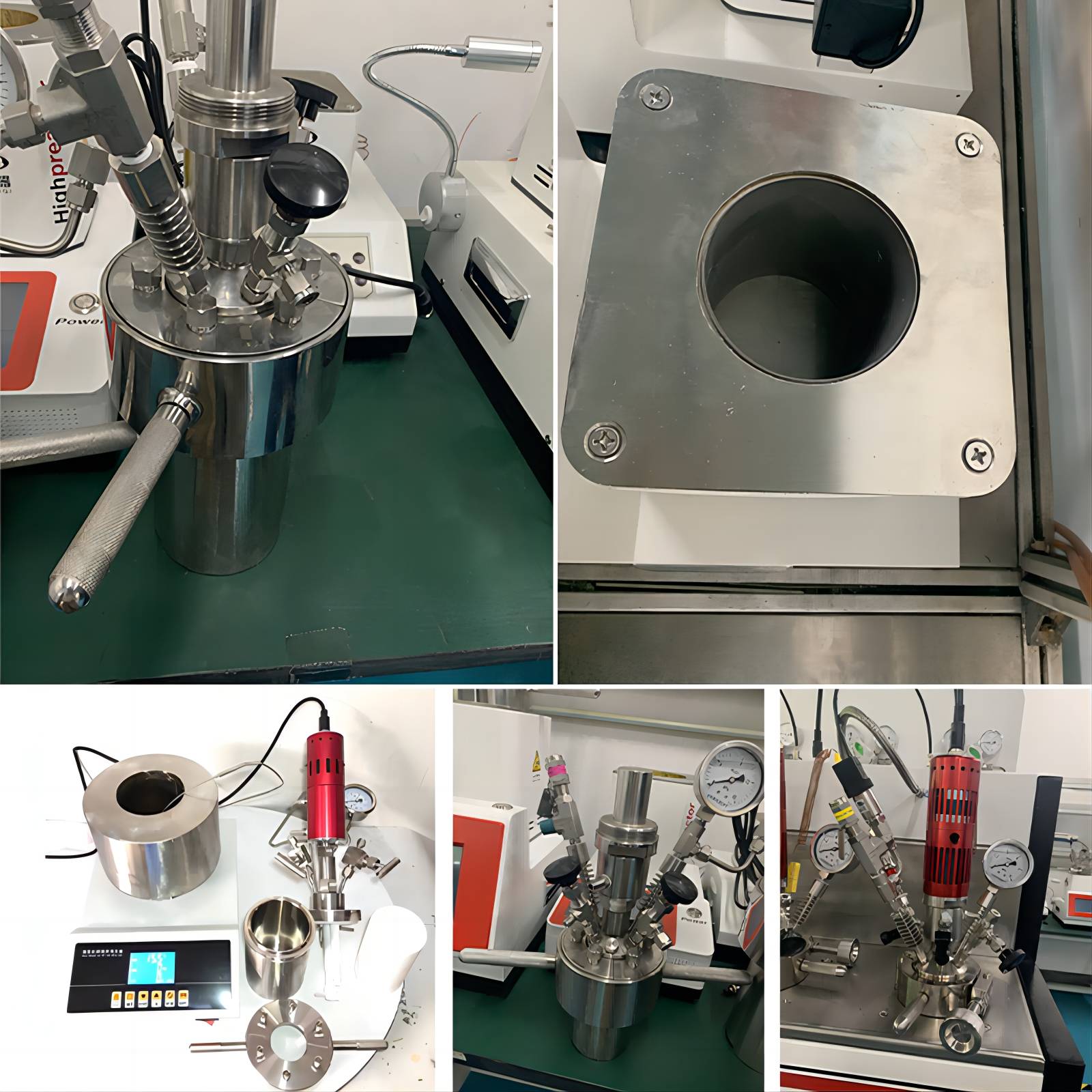

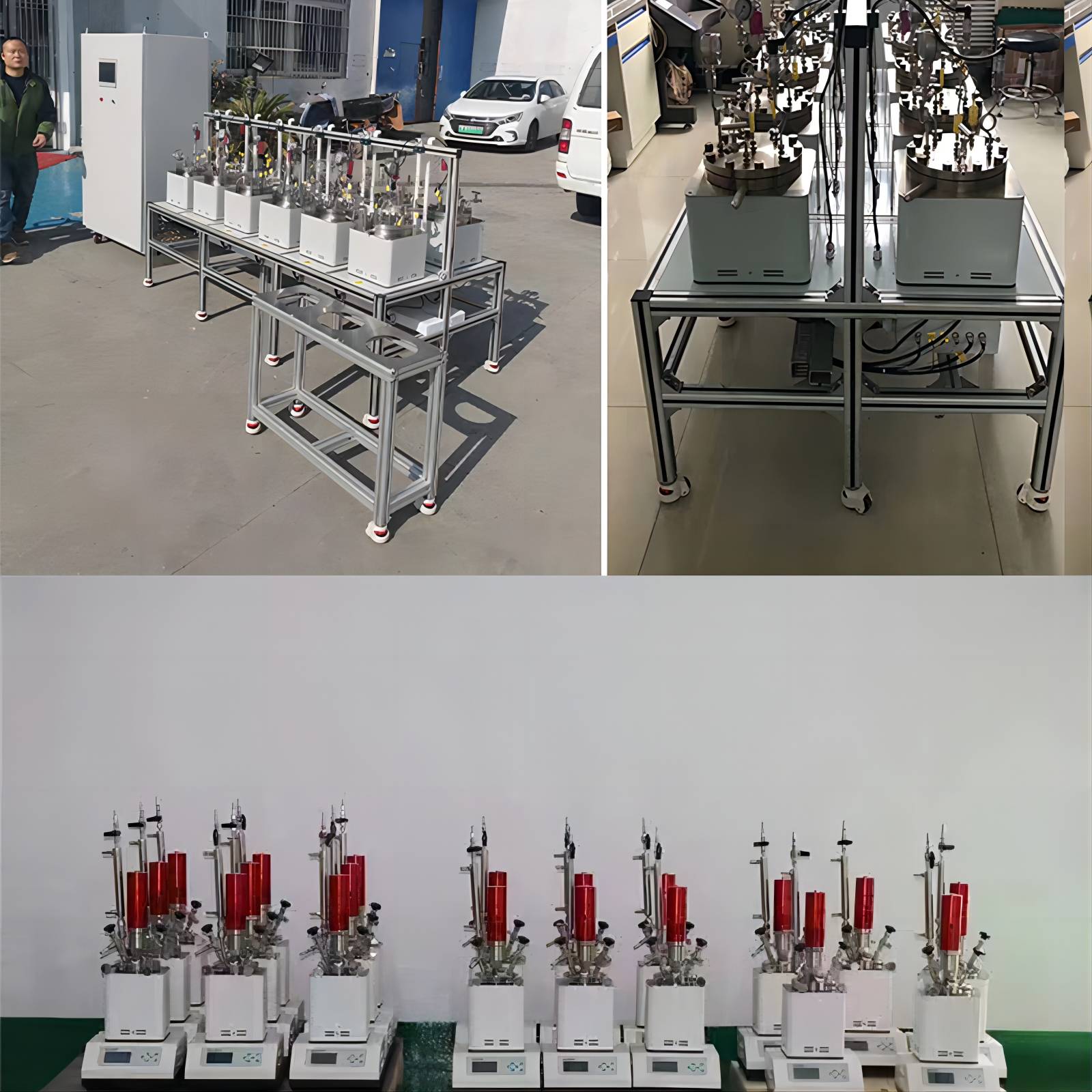

Our high-efficiency reactor equipment

            CRTOP Machinery Co., Ltd. is committed to the research and development and production of high-efficiency and energy-saving reactor equipment, providing customers with the best solutions and comprehensive services. Our high-efficiency reactor equipment has the following significant advantages in the chemical industry:

•  High-efficiency heat transfer system
  Our reactor adopts advanced jacket and inner coil heating system, which can quickly and evenly transfer heat, improve the reaction rate, and ensure the stability of the reaction process.


•  Accurate control system
  Equipped with high-precision temperature and pressure control system, it can achieve ±0.1℃ temperature control accuracy, ensure accurate regulation of reaction conditions, and improve product quality.


•  Safe and reliable
  Our reactor has multiple safety protection measures, including over-temperature alarm, over-pressure protection and automatic shutdown function, to ensure safe operation and reduce production risks.


•  Easy to operate and maintain
  Our reactor is simple in design, easy to operate, and equipped with automatic cleaning system, which reduces the time and cost of cleaning and maintenance. The modular design is easy to maintain and maintain, the equipment runs stably, and the failure rate is low.


•  Diversified applications
  Our high-efficiency reactor equipment is suitable for a variety of chemical reactions such as organic synthesis, polymerization reaction, catalytic reaction, etc., which can meet the needs of different customers.


Conclusion

            The application of high-efficiency reactors in the chemical industry not only improves the efficiency of chemical reactions and product quality, but also promotes technological progress and innovative development in the chemical industry. Choosing our high-efficiency reactor equipment will bring more opportunities and success to your business. We are committed to providing customers with the best products and services, and look forward to working with you to create a better future together.
