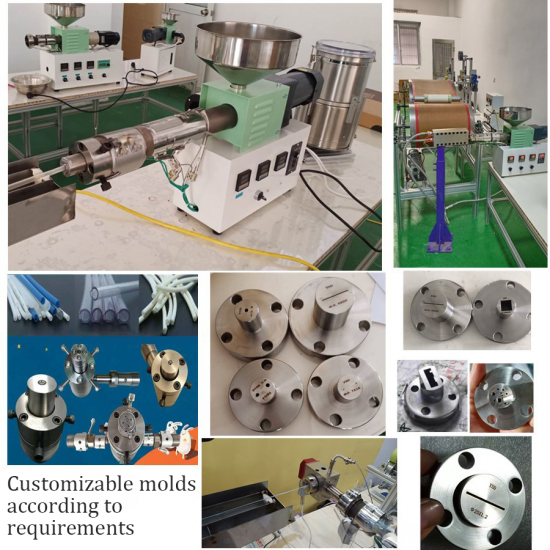

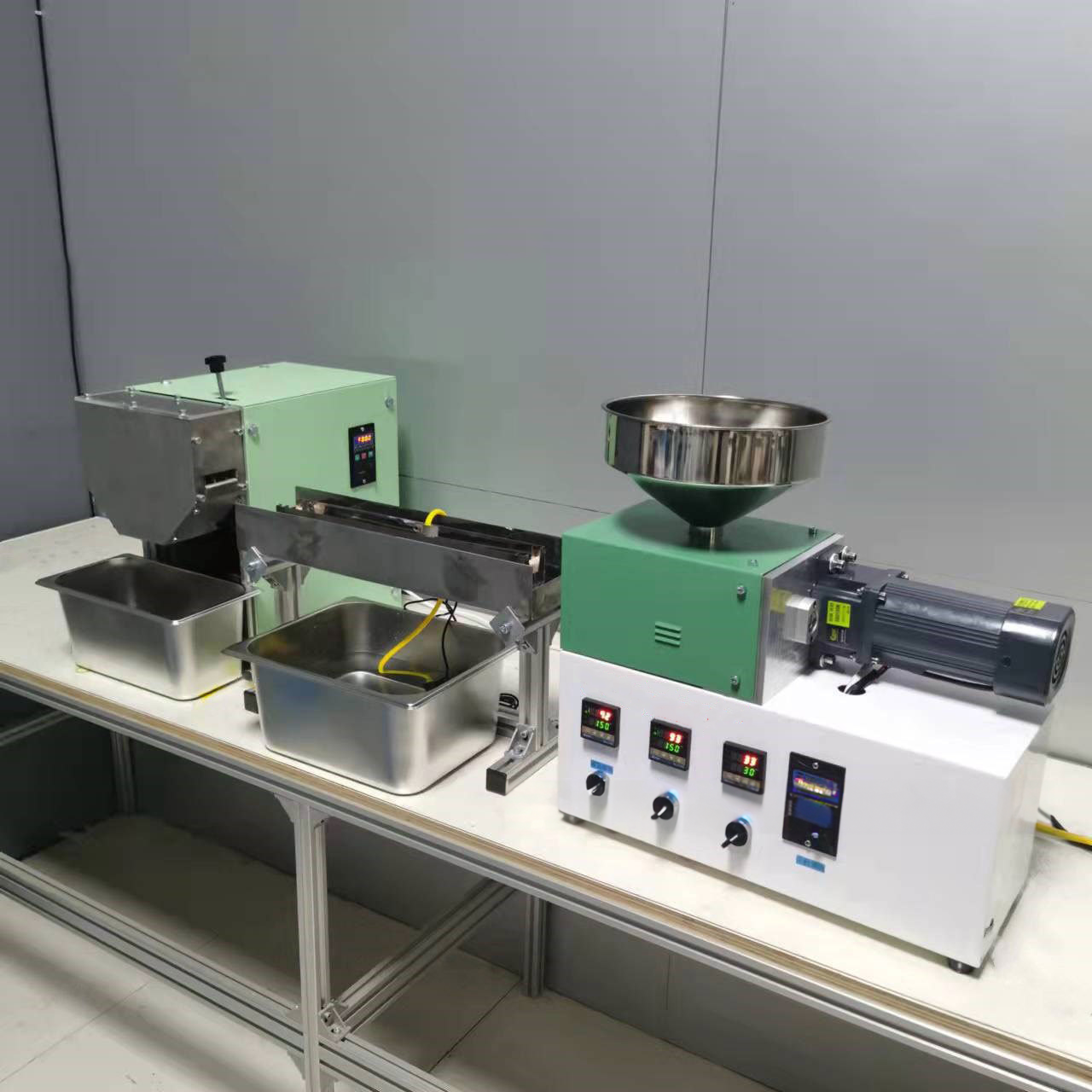

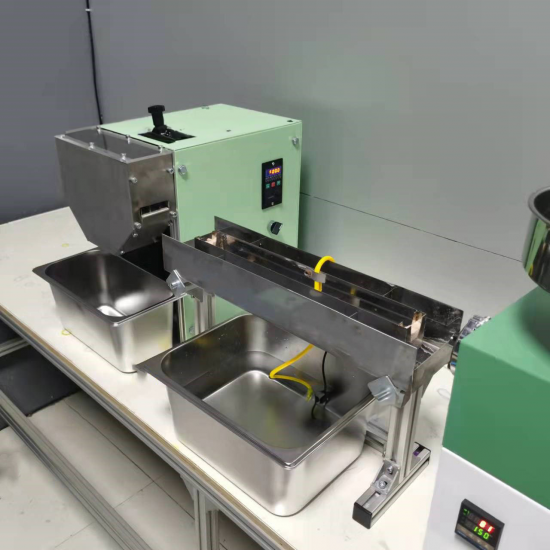

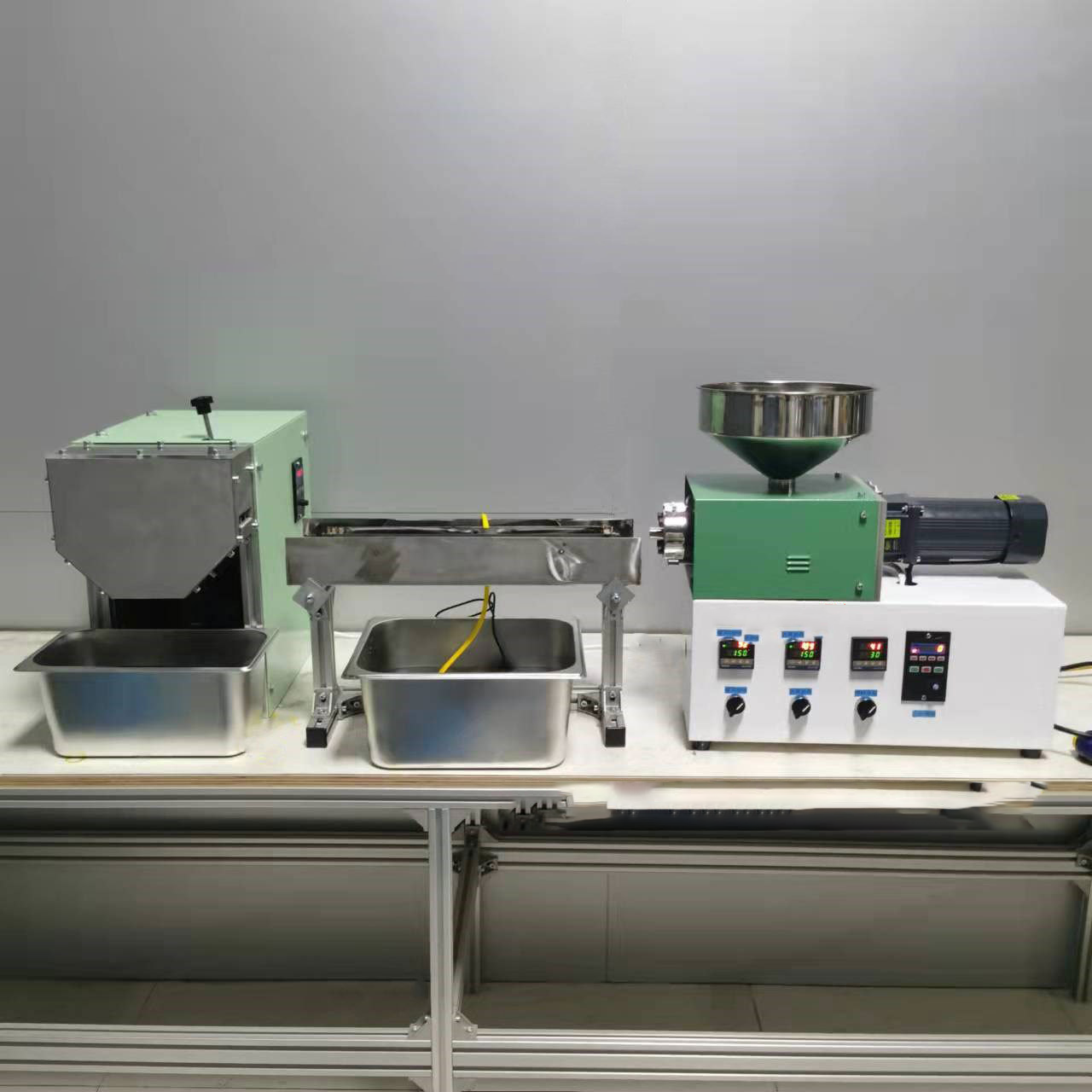

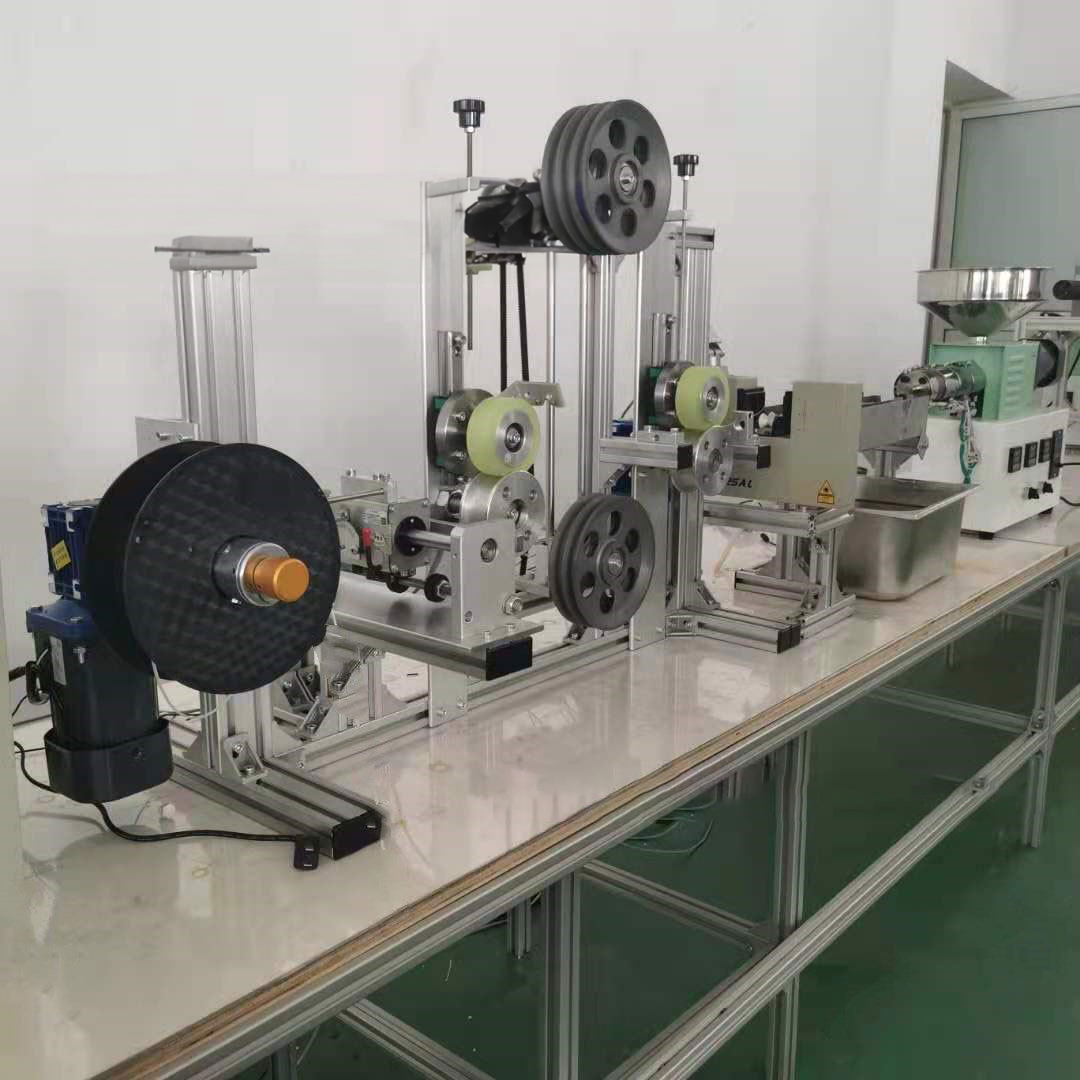

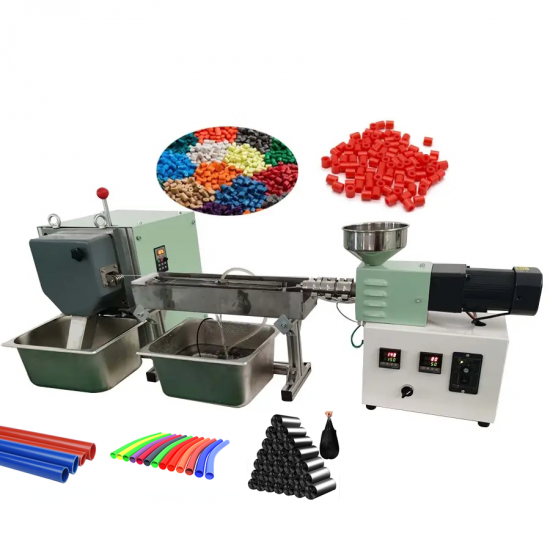

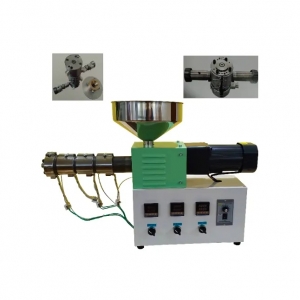

Plastic Extruder Machine Mini Plastic Extruder Mini Extruder Film Machine Plastic

Plastic Extruders Plastic Extruder Machine For Recycling Extruder Machine Plastic

SEND A MESSAGE :

WhatsA pp : +8618030169616 Tel .: +86 18030169616

Email : allen@crtopmachine.com Skype : +8618030169616

Item No.:
CRT-168
Product Origin:
China
Shipping Port:
Xiamen (Or any port in China)
Min Order:
1
Lead Time:
7-10 days
Compliance:
CE
Minimum Order Quantity:
1
Operation method:
fully automatic
Screen:
push button
Capacity:
0.1-5kg
Speed:
15r/min
Voltage:
220/110V Or customize
Warranty:
1 year
Dimension(L*W*H):
0.75m * 0.2m * 0.5m
Delivery Time:
6-8Day

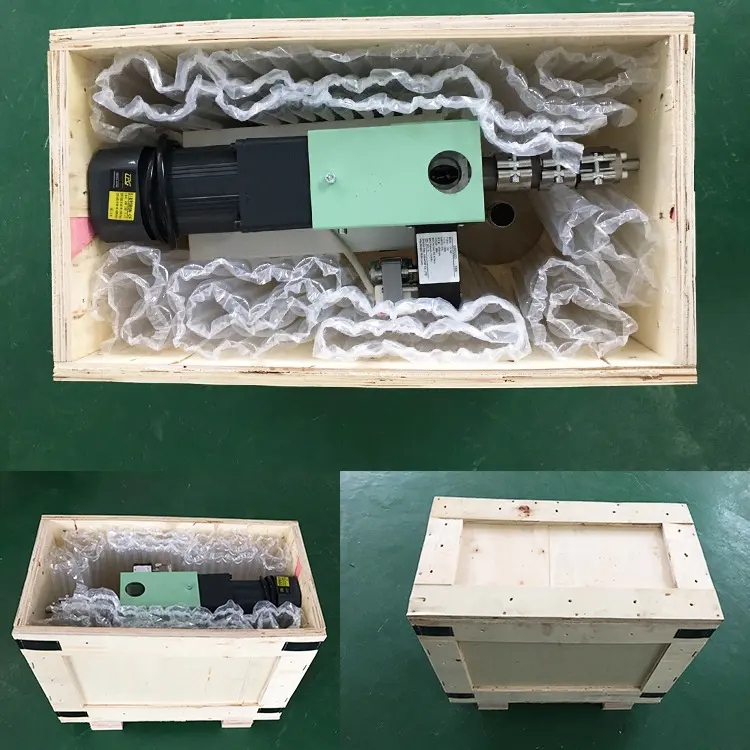

Packaging Details:
Standard export wooden box

contact now

Product Details

The basic performance parameters
1, Capacity: 0.1-5KG / hr
2, Screw rotation speed: max to 15r/min
3, The production line center height: 300mm;
5, Line direction: left and right to close the discharge →
6, The installation area: length×width*height = 0.75m * 0.2m * 0.5m ; weight: about 30KG
7. Motor Power: 250W
8. Voltage: 220V 110V, or customers can specify

Technical Parameters

Model	SJ-15	SJ-25	SJ-35	Click on WhatsApp to query the quotation>>
Production Capacity	0-5 (kg/h)
Raw Material	PE/PP/PVC/ PLA/PC/TPU/ABS/NYNONG
Voltage	Single phase, 220V 60Hz
Main Motor Power	250W
Heating Power	1000W
Screw	Single Screw Extruder
Diameter	35mm
Screw L/D	12: 1
Material	38CrMoAlA
Surface treatment	Nitrogenization and polished
Inner surface treatment	Nitrogenization and polished
Max heating temperature	300℃
The nitride layer thickness	0.5~0.7 millimeters.
The surface hardness	HV850~940
Extruder total Power	940W
Control Type	Single-phase electronic governor control
Heating control zone	3
